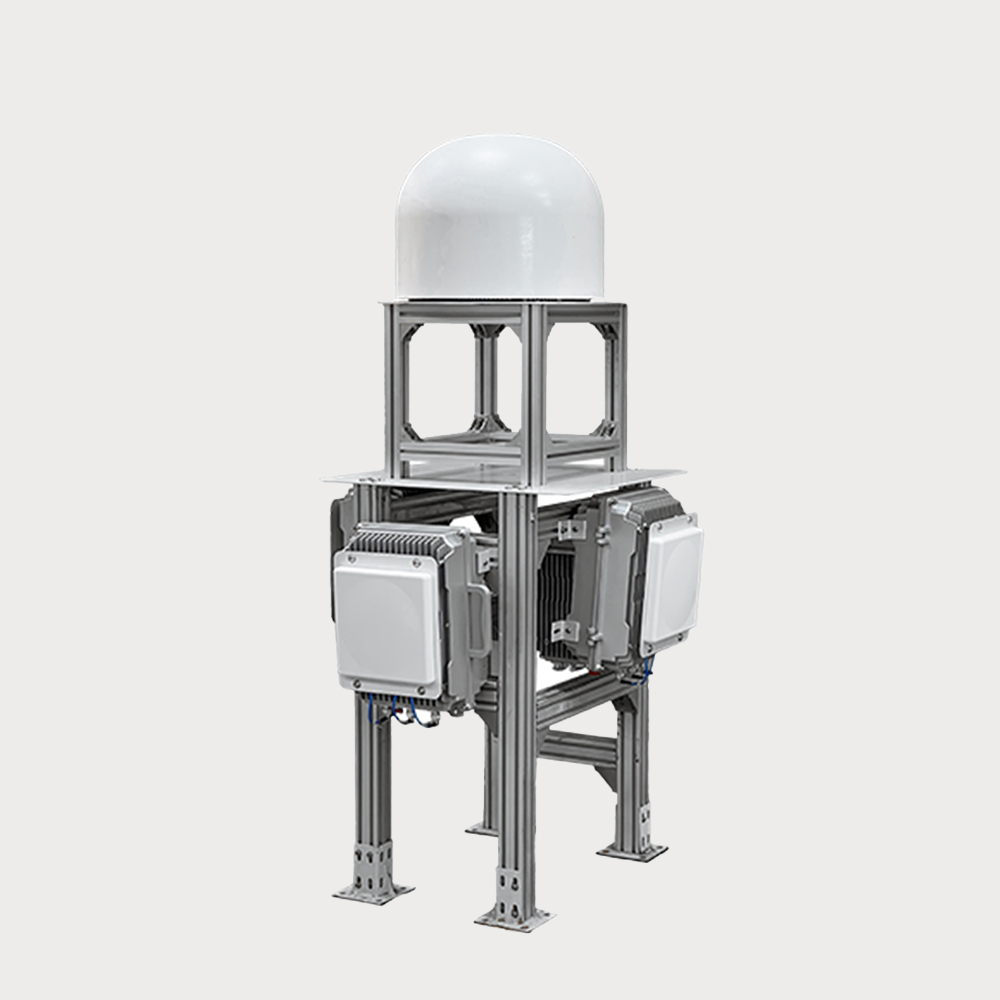

Integrated UAV Detection and Countermeasure System

Advantages：No need for personnel to attend intelligent interference mode, can increase the energy storage battery.

Description：Product function: Mainly used for the detection and identification of drones in flight and interference countermeasures, the internal energy storage battery can be added to meet the application needs of multiple scenarios. Detection parameters: frequency

Application Fields：Low altitude protection in key areas such as power plants, petroleum and petrochemical, aviation and airports, public security and judicial, supervision sites, and activity sites.

• The device can continuously monitor, counteract, and record the airspace of the defense zone around the clock, maintaining stable operation even in harsh weather conditions such as fog and thunderstorms.

• The system supports the setting of defense plans and automatically and intelligently executes preset plans. It can coordinate with detection equipment to carry out coordinated strikes outside the defense zone.

• The device can be customized with multiple modules and multi-array combinations according to customer needs. The antenna angle of a single device can be customized from 10° to 180°, meeting various jamming requirements.

• The device emits high-power jamming signals in the same frequency bands (1.5G, 2.4G, 5.8G) to suppress drone control signals, with a jamming radius of up to 1000-5000 meters.

• High-gain directional flat panel antennas are used, with single-channel output power of 25-30 watts, focusing energy for more precise target strikes.

• Strong resistance to external electromagnetic fields and high expandability.

• Internal energy storage batteries can be added to meet the needs of various application scenarios.

• Multiple devices can be combined for spectrum-coordinated jamming operations (e.g., if a drone intrusion is detected from the north, the northern jamming module can be activated separately for a strike).

• Whitelist and blacklist: The same orientation, frequency band, brand, and model of drones can be marked with whitelist and blacklist tags.

• Unattended mode: After activating full automatic defense, the system can enter unattended mode for autonomous detection. (When equipped with a strike system, the strike mode is automatically activated).

• Remote controller recognition: Can recognize ≥ 12 different non-DJI model drone remote controllers simultaneously.

• Precise identification: Can accurately identify the drone model and unique electronic fingerprint, and simultaneously recognize ≥ 35 different drone brands and corresponding ID numbers (identity verification).

• Advanced warning capability: Drones can be detected without takeoff, and ground power-on can detect with advanced warning capability.
