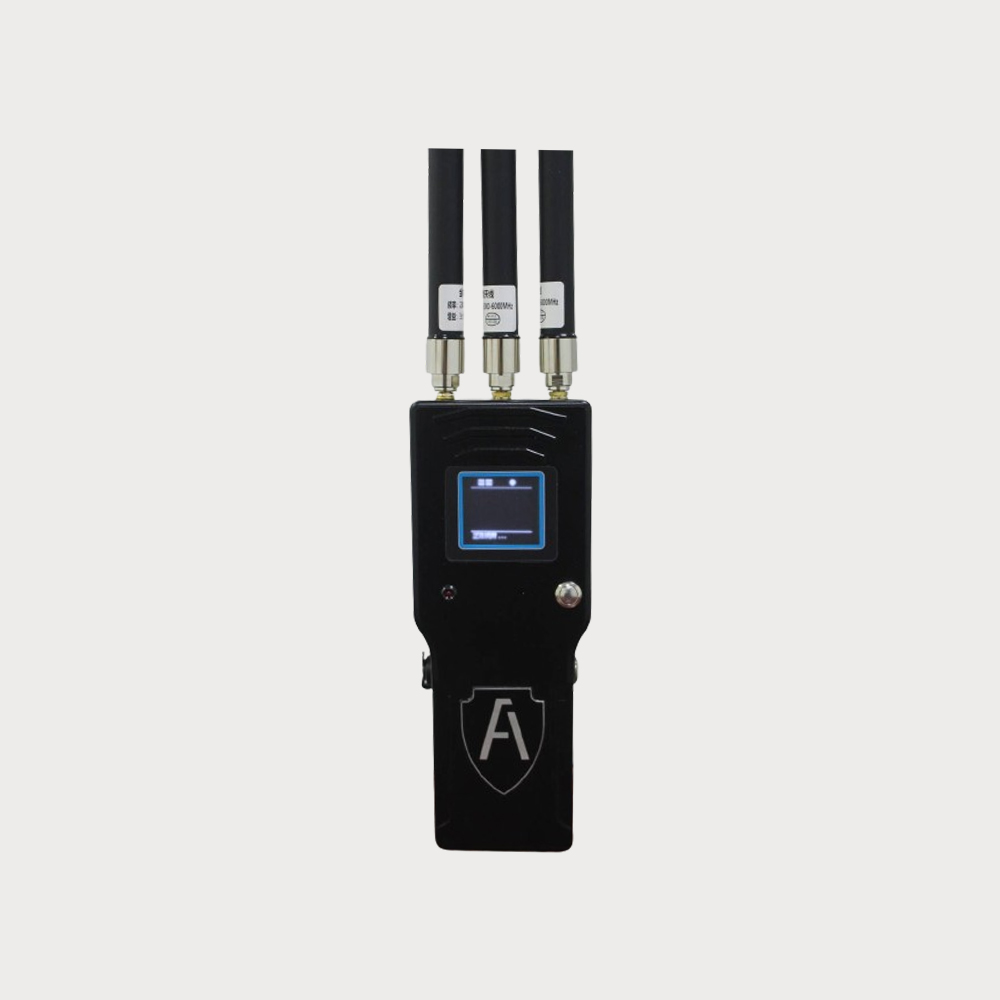

AI Spectrum-Sensing Drone Detector

1. Comprehensive identification: real-time display of the number of sorties, models, brands and working frequencies of the detected UAVs;

2. Target direction finding: Equipped with a direction finding antenna, enter the direction finding mode, and realize the detection and direction finding of the target UAV;

3. There are various alarm methods: support lighting, sound and light, sound and light and other alarm forms, and the urgency of the alarm bell and the frequency of light flashing can be adjusted;

4. Support volume adjustment: Volume adjustment function, users can adjust the appropriate volume according to their needs;

5. Support brightness adjustment: The screen display brightness can be adjusted in multiple files, and users can set the appropriate screen display brightness according to the requirements;

6. One-key language switching: The device can switch the display language of the device with one key (Chinese and English switching);

7. Reset: The relevant parameters and configurations of the equipment can be restored to the factory state;

1

Working mode

Passive detection

2

Operating frequency

2.4GHz, 5.8GHz, 900MHz, 1.1GHz, 1.2GHz, 1.4GHz and above

and other commonly used drone frequencies

Detect and identify none

DJI series, FPV, FEMI, YUNEEC, Altai, HUBSAN,

3

Human-machine type

Powervision, Taylor drones and video transmission modules

3

Detection distance

0-2000m

Detection range

4

0°~360°(Omnidirectional antenna)

5

Identification time

≤2S2

6

False positive rate

1 time / day

7

insight

The number of drones that can be detected and identified at the same time ≥ 10 (5 manufacturers
