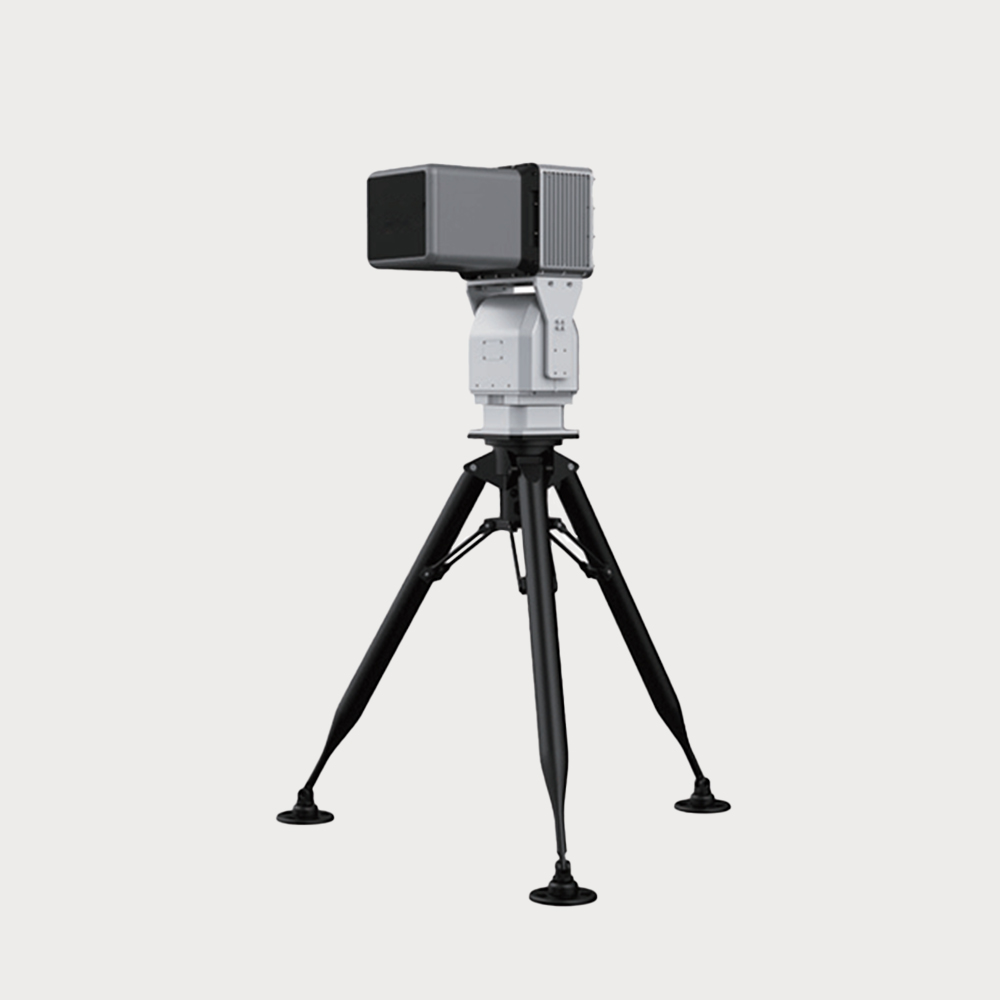

Full-Band Software-Defined UAV Jammer JR-TSL1189

The frequency scanning speed is fast, the antenna energy density is large, and the frequency agility is strong, which is widely used in UAV frequency hopping control signal interference, and the digital modulation source design can quickly generate UAV interference signals of the new system, and the suppression efficiency ratio is significantly improved, and the interference response time is shortened, which is suitable for urban station deployment needs. The jamming equipment uses an intelligent servo system as the motion carrier, and has long-distance and 360° UAV target control capabilities.

Frequency band

0.4-6GHz

Interference distance

The interference radius ≥ 3km (0.1W radiation source), and the effective distance can be adjusted by software

Dry-pass ratio

10:1

Interference angle

360° (gimbal realization)

Interference effective time

≤5s

Gimbal speed

≥60°/s

Connection

Ethernet interface

Power supply mode

AC110~220V
