Photoelectric Tracking and Directional Jamming All-in-One

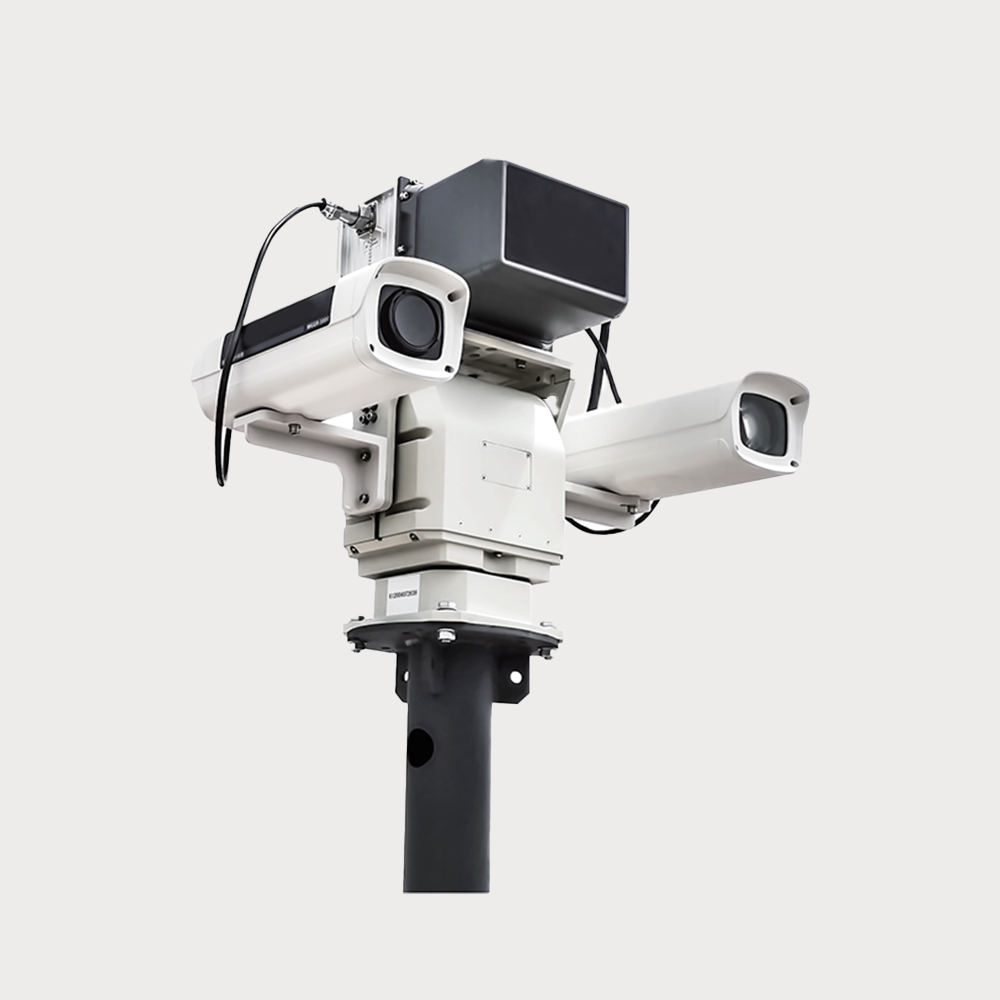

The JR-TSL1185  series UAV photoelectric tracking and directional jamming all-in-one machine is mainly composed of a jammer unit, an electroelectric tracking unit and a servo turntable, which has long-distance, all-day, and 360° all-round UAV target tracking and countermeasure capabilities. By emitting electromagnetic waves in specific frequency bands to interfere with UAV satellite navigation signals or block the communication link between UAV and remote controller, the UAV can produce the effect of forced landing or return.

Frequency band

400MHz, 800MHz, 900MHz, 1.5GHz, 2.4GHz, 5.8GHz multi-band

Interference distance

1km~3km optional (0.1W radiation source)

Track performance

Resolution: 1920*1080P (visible light)/640*480 (thermal imaging) optional

Tracking capacity: 1km~2km optional

Dry-pass ratio

20:1

Interference angle

360° (gimbal realization)

Interference effective time

≤3s

Connection

Ethernet interface

Power supply mode

AC110~220V
