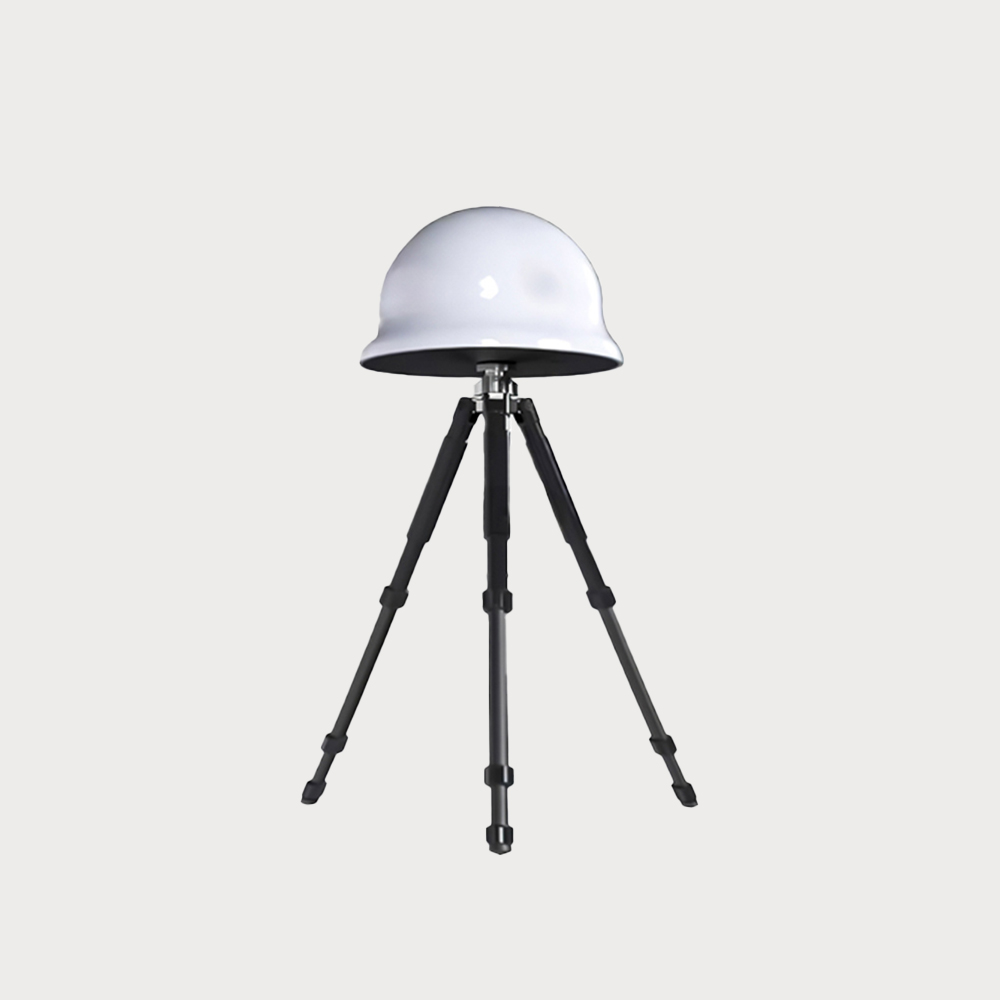

UAV Library Frequency Identification Device

Description：equipment adopts the radio detection and analysis method and does not transmit any radio signals, belonging to passive detection equipment.

Application Fields： is used in security, public safety, counter-terrorism, stability and other fields, the device has a small size, light weight, low power consumption, high reliability, long life and good performance features

equipment can identify the operating frequency and distance of known drones in the library, with lateral function, the weight of the detection component is 6.5KG, the detection distance is 5KM in the open area without obstruction on the flat ground, and the detection distance is 3KM in the urban environment. The radio detection equipment detects the drones in the 2.4G and 5.8G frequencies.

identify the full range of models

can detect more than 95% of common civilian UAV models.

Far detection distance

fixed-frequency detection, detection distance 3-5KM, wide detection range.

High detection accuracy

high accuracy of angle and distance measurement of the target, and high accuracy detection can be maintained in the complex electromagnetic environment.

No need for personnel

Remote control, one-key automatic search, intelligent detection, without the need for personnel on duty to complete the detection of airspace in the defence zone.
