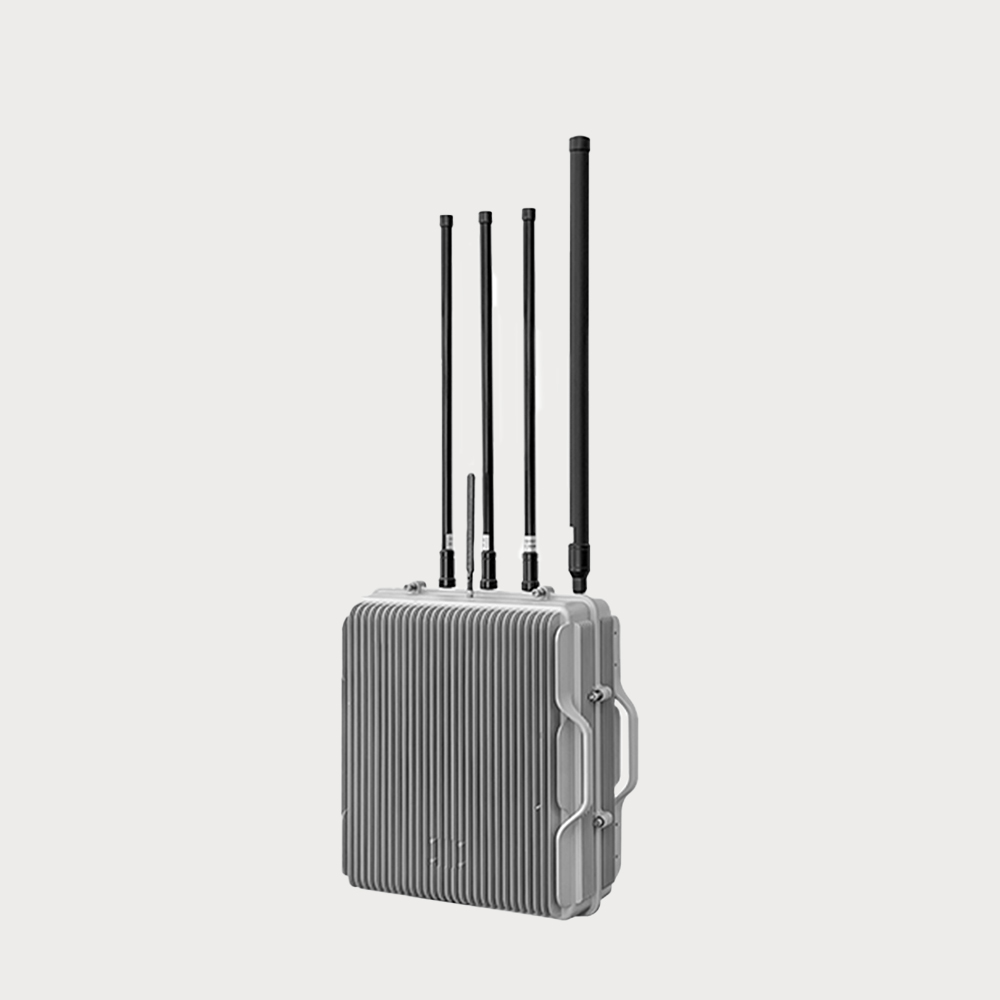

Unattended Automatic UAV Countermeasure Station

Advantages：The system features drone detection and early warning, model identification, and countermeasures for expulsion.

Description：The XT02-GD C-UAS standard configuration consists of an MD-RU80T drone detection and identification unit and one countermeasure device. The system is capable of drone detection, identification, and countermeasures for expulsion.

Application Fields：Suitable for three-dimensional defense against “low, slow, and small” drone targets in complex urban electromagnetic environments.

• Secondary Frequency Conversion and Intermediate Frequency Digital Processing Technology: Combines the advantages of traditional analog receivers and modern digital receivers.

• Detection Covers 95% of Market Drone Models: Once the drone detection module detects drone activity nearby and confirms the target through the drone identification module, the system can automatically trigger the jamming module. High sensitivity, with detection distances generally reaching over 70% of the drone’s image transmission distance when using a 6dBi antenna, and over 50% when using a 3dBi antenna (depending on the usage scenario).

• RF Front End with Professional Limiter: Ensures normal operation near the jammer without damage.

• Extremely Low False Alarm Rate: Especially in complex electromagnetic environments, superior to other equipment that uses spectrum feature comparison.

• Jamming Mode: 360° omnidirectional jamming.

• Jamming Links: ① Satellite Navigation Link; ② Drone Wireless Telemetry Link; ③ Drone Wireless Image Transmission Link.
