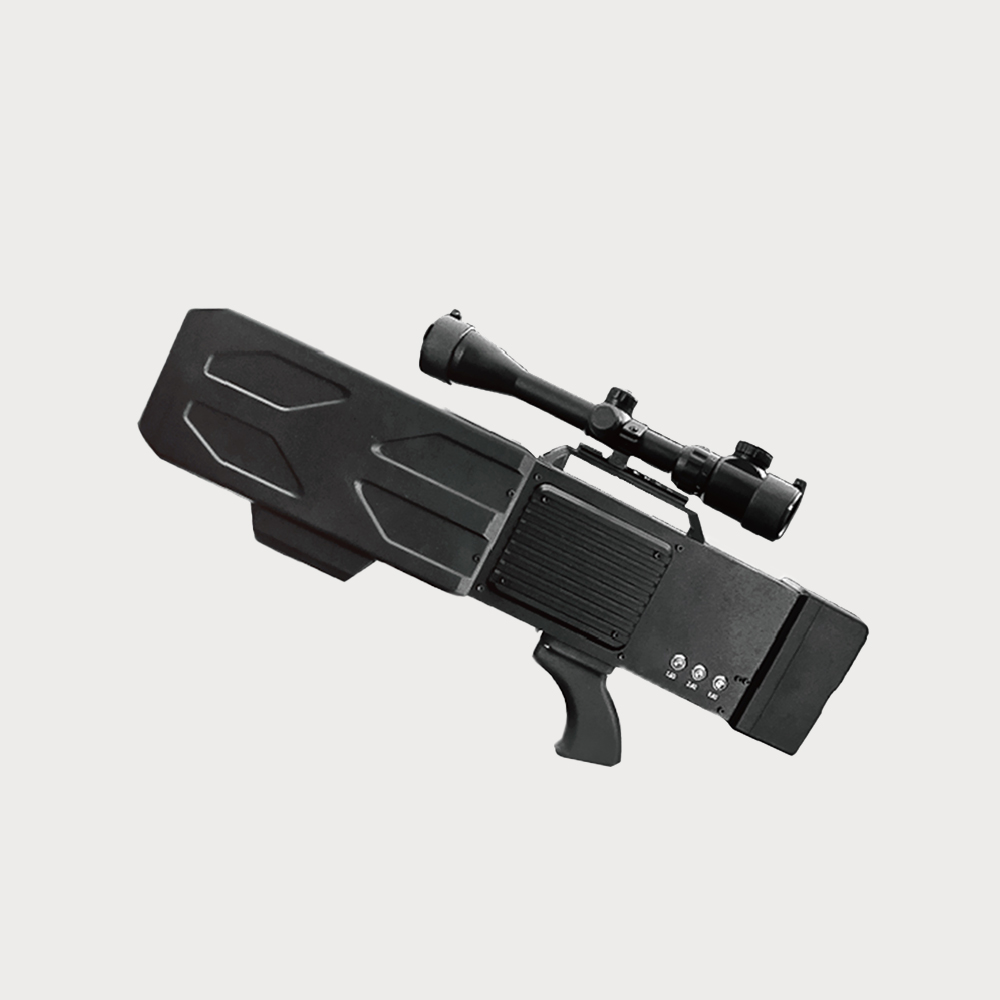

Single-Channel High-Power Jammer 1km+

The device will not destroy the drone, only to the drone to launch suppression control signals, interfere with the data link and positioning system, block the communication between the drone and the remote control and navigation signals, forcing the drone to hover, automatically land or return.

By launching high-power interference signals in the same frequency band (900MHz, 1.5G, 2.4G, 5.8G frequency band and 1.5G (GPS/-GLONASS/ satellite navigation)), the four-channel UAV strike gun represses the UAV control signal, interferes with the data link and positioning system, and cuts off the communication and navigation signals between the UAV and the remote control. Forcing the drone to hover, land or return.Through frequency interference blocking, the UAV flight control system, GNSS system and data transmission system are interfered with, and the communication between the UAV and the operator is blocked, forcing the UAV to land smoothly on the ground or return automatically.

The device emits high-power interference signals in the same frequency band to suppress the UAV control signal, and the interference distance can reach 1500m.

High gain directional antenna, energy concentration, more accurate target.

Use large capacity battery, sustainable work for more than 60 minutes, can be selected according to work needs.

The device is portable, highly maneuverable and is not constrained by any terrain environment, and can be flexibly deployed to all areas that need to be protected against drone intrusion.

It can interfere with most of the commonly used signal frequency bands of drones, covering more than 95% of mainstream UAV models on the market.

Grab the drone signal quickly, work as usual under fog and light rain weather conditions, and have strong environmental adaptability.

ModelDZ05-ProDevice WeightApprox. 4KG (including battery)Device Dimensions (excluding scope)Length 620mm * Width 160mm * Height 60mmAviation Case DimensionsLength 660mm * Width 400mm * Height 125mmAviation Case Weight (including device)Approx. 8.5KGAntenna TypeDirectionalAntenna Gain9dBAntenna Angle30 degreesPower Supply24v5AhOperating Time60 minutesOperating Temperature-20℃～+55℃Relative Humidity80%RHExpansion FunctionEquipped with standard rail, can install scope, night vision device, law enforcement recorder, etc.Jamming DistanceOpen area ≥1500 meters (depending on model/environment)Channel Frequencies And PowersJamming Frequency/PowerJamming FrequencyChannel Power5.8GHz20W900MHz/2.4GHz30W1.5GHz10W
