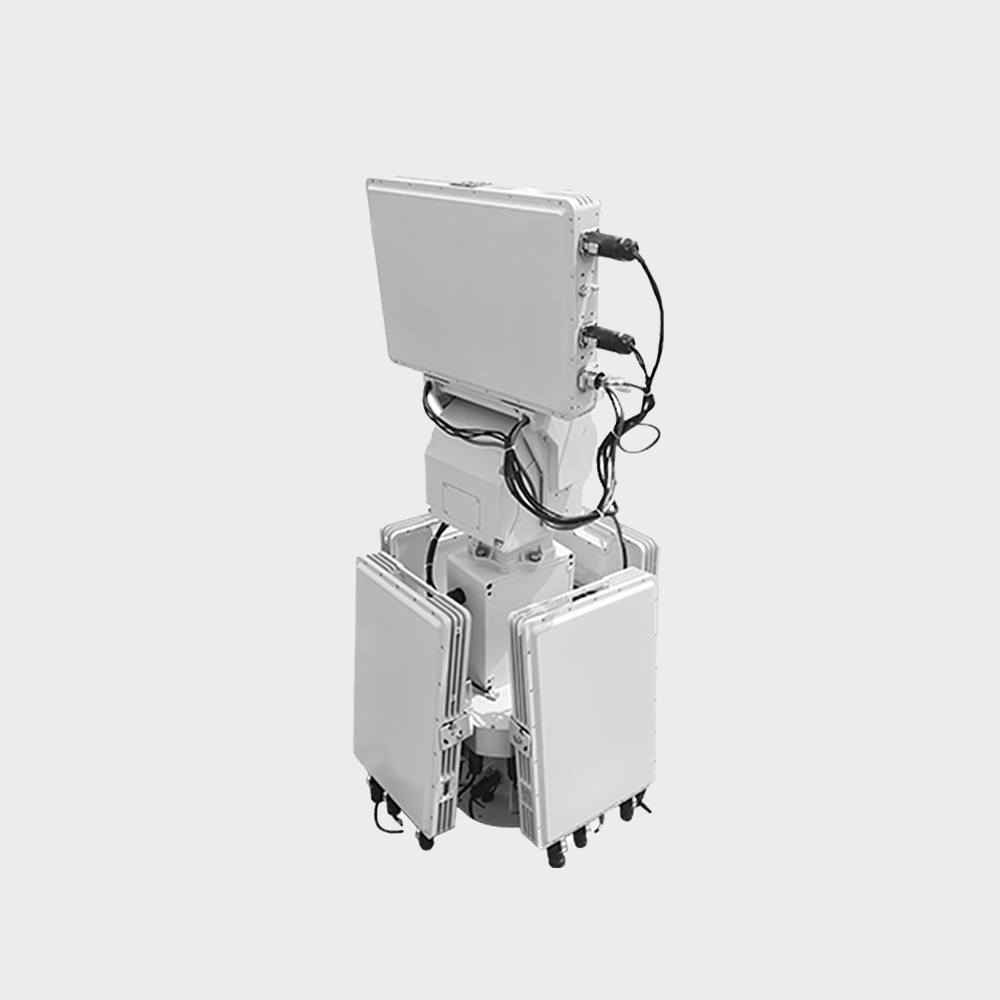

High-Accuracy Wide-Range Monitoring Radar

Working SystemPhased array system (azimuth electronic scanning + elevation electronic scanning)

Working ModePulse Doppler

Working BandC-band

Maximum Detection Range≥ 3.0km (typical target: DJI “Phantom 3”)

Minimum Detection Range≤ 100m

Azimuth Coverage0°～360°

Elevation Coverage0°～40°

Range Accuracy≤ 10m

Azimuth Accuracy≤ 1.0°

Elevation Accuracy≤ 1.0°

Data Rate≥ 1 time/s

DimensionsRadar body: 1500mm×800mm×800mm

Power distribution control box: 440mm×440mm×182mm

Weight≤ 100kg

Power SupplyAC220V/600WInterfaceRJ45 / 1 Ethernet (UDP protocol)Operating EnvironmentOperating temperature: -40℃～55℃Storage temperature: -45℃～65℃Measures against rain, dust, and sandMeasures against moisture, salt fog, and mildewNote1) Detection range condition: UAV with radial speed not less than 0.5m/s, false alarm probability of 10^-6, detection probability of 0.82) Typical UAV target is DJI “Phantom 3”
