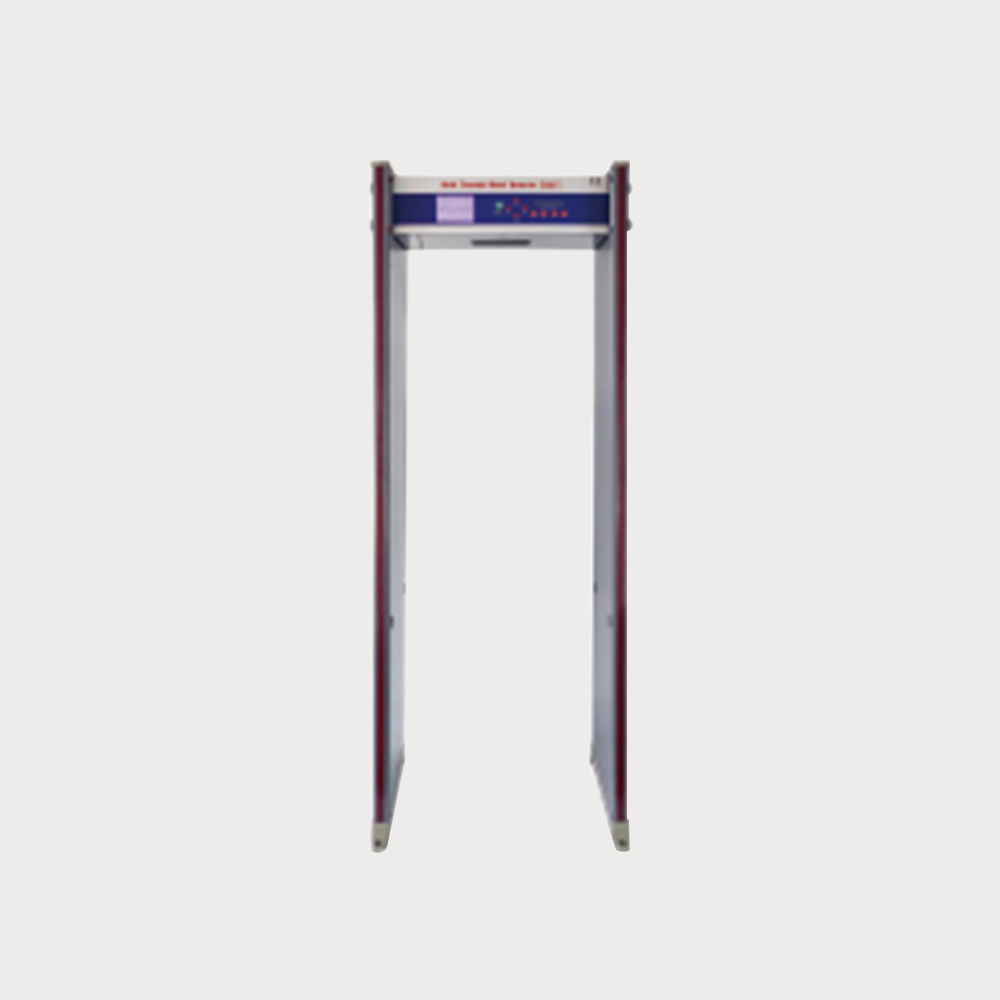

Intelligent People-Counting Inspection Device

• Fire, Water, and Shock Resistance Utilizes imported fireproof board for door panel materials, offering advantages such as fire resistance, water resistance, shock resistance, and lightweight design.

• Large 5.7-inch LCD Display and User-friendly OS Features a bilingual (Chinese and English) menu with a large 5.7-inch LCD screen, enhancing usability with a high-end remote control function.• 360° Comprehensive Detection Detects without blind spots within the area, ensuring uniform sensitivity across different points.• Six Overlapping Detection Zones Combines high-brightness LED column lights that match human height to accurately locate metallic objects.• Adjustable Sensitivity Allows independent sensitivity adjustment from 0-255 for each detection zone, ensuring precise control.• Modular Design The modular construction simplifies installation and facilitates easy troubleshooting.• Digital Circuit Signal Processing Employs a digital circuit system for signal processing, which enhances interference resistance and effectively reduces false and missed alarms.• Intelligent Counting and Statistics Offers intelligent counting capabilities to accurately tally the number of people passing through and the number of alarms triggered.

security door adopts modular design, easy to install, the sensitivity of each detection area can be adjusted independently from 0-255, the digital circuit signal processing system adopted has stronger anti-interference ability, more stable and accurate detection.

360° all-round detection: six independent detection areas and one overall detection area, no blind spots in the detection area, good detection uniformity at each point in the detection area, more stable and accurate detection.

Convenient operation: equipped with a 5.7-inch large-screen LCD display panel and a humanized operating system, bilingual menu design in Chinese and English, with remote control operation function, easy to use, high-end atmosphere and class.

Intelligent digital system: can accurately calculate the number of people passing and the number of alarms. It has excellent anti-electromagnetic interference ability and strong anti-collision ability, and can operate normally in crowded conditions.

Adjustable sensitivity: The sensitivity of each detection area can be adjusted independently from 0-255, and the anti-interference ability is stronger according to the needs, which is suitable for different needs.

Modular design: It adopts modular design, is easy to install, easy to troubleshoot, and has continuous working performance, and it is impossible to escape detection at any time. It can automatically measure and display the interference of the surrounding environment, which helps to select the installation site.

Password protection: It has a password protection function. Only by entering the correct password can the parameters be modified. Non-operating personnel cannot change the security door parameter settings, which is convenient for management.

Product ModelMDAJ-600Operating Voltage110V-242V 50/60HzPower60WDetection Program100-level sensitivity adjustment, suitable for different scenariosPersonnel ThroughputMore than 60 people per minutePower SupplyAC220V/50Hz or AC110V/60HzPower Consumption35WOperating Environment-20℃~50℃, ≤95%RHExternal Dimensions222.5*82*67cmPassage Dimensions200*55.5*70cmPackaging Dimensions 226.5*70.6*17.5cm (2 pieces/box),Main unit box 75.4*25.6*46.6cmTotal WeightApproximately 64kg/set
