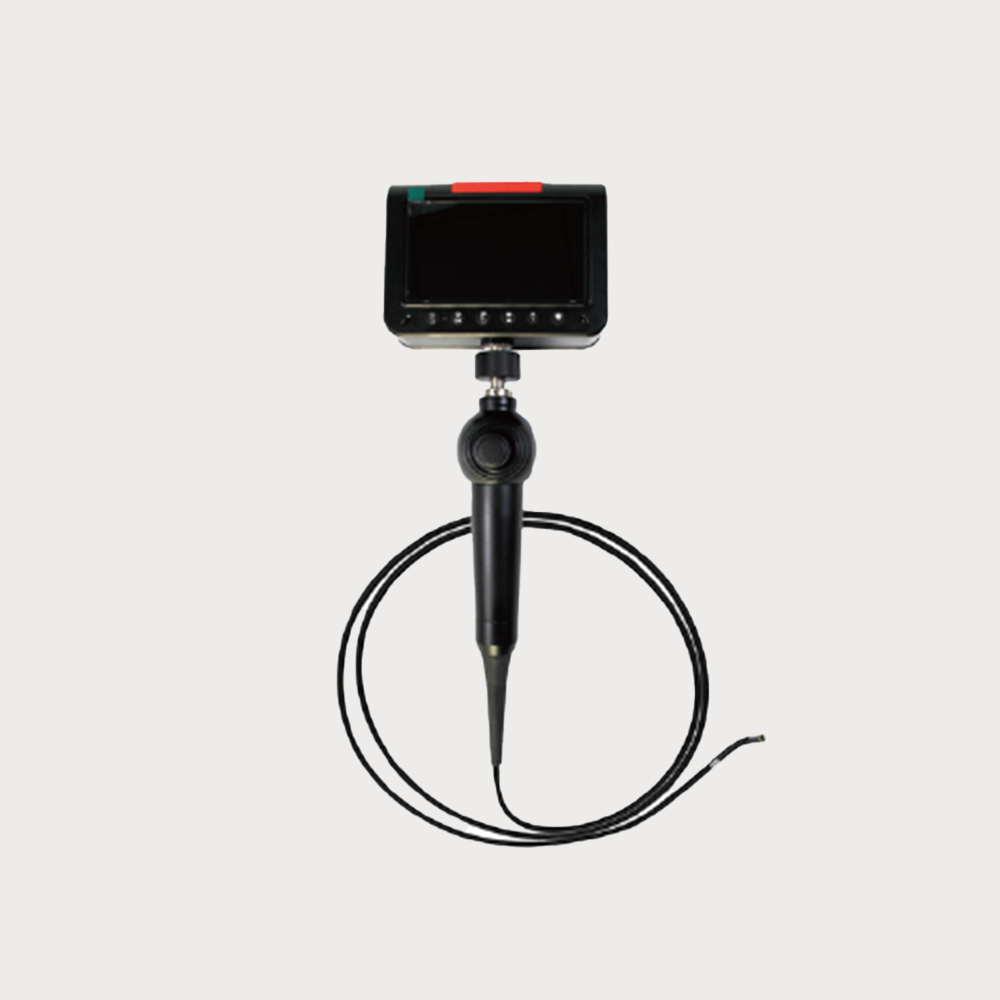

Tungsten Wire Braided Borescope Probe

• Compact and portable handheld design; simple operation and easy maintenance enhance work efficiency;

• Controllable camera with mechanical joystick control, 360º rotation for viewing without blind spots;

• Equipped with a high-definition probe sensor that displays each part clearly and smoothly on the screen;

• Standard 5-inch high-definition LCD display with a resolution of 1280*720P, high brightness, high-quality image, and multiple digital zoom capabilities;

• Uses high-brightness LED lighting sources with low power consumption and long lifespan;

• Multi-functional operations including image capture, video recording, image and video playback review, brightness and clarity adjustments, and system menu settings;

• The insertion tube is made of tungsten wire mesh and stainless steel exterior, featuring durability, waterproofness, and other characteristics.

The machine is small, portable, handheld design; Easy operation, easy maintenance, improve work efficiency;

Controllable lens, mechanical rocker control, 360º rotation observation, no dead Angle;

Equipped with HD probe sensor, each part of the display can be clear, and the picture is smooth;

Standard 5-inch HD LCD display, resolution 1280*720P, high brightness, high image quality, multiple times digital amplification;

High brightness LED lighting source, low loss, long life;

Image photography, video, image video playback view, brightness definition adjustment, system menu setting and other multi-functional operations;

The insert tube is made of tungsten wire woven net, stainless steel outer net, etc., with wear-resistant, waterproof and other characteristics.

Diameter6 mmWorking Length1.5 mDepth of Field10 mm to infinityField of View≥100°Observation DirectionDirect viewFocusFixedResolution1 million pixelsWhite BalanceAutomatic white balanceOperation TypeHandheldInsertion Tube MaterialWear-resistant and corrosion-resistant tungsten steel wire braidGuidance Method360° omnidirectional mechanical silent rotation without dead anglesProbe Bending Angle140° (high sensitivity bionic bending joint, flexible angle control)DisplayScreen SizeHigh brightness 5-inch color LCD monitorResolution1280*720 pixelsLighting SourceHigh brightness white LED, adjustable brightness, switchableBrightness7-level brightness adjustmentButton FunctionsVideo recording, photo capture, brightness adjustment, menu, zoom, playback, quick grid viewPhoto/Video Resolution1280*720 pixelsStorage MediumStandard 8 GB TF card, expandable to 32 GBData OutputUSB 2.0 port, HDMI outputVideo StandardPAL/NTSCRecording FormatPhotos: JPG, Videos: AVIMain Unit StructureDesignIntegrated handheld design, all functions operable with one handBatteryDedicated replaceable lithium batteryPower SupplyRechargeable 18650 lithium batteryOperating Time≥ 3 hoursOperating Temperature-20°C to 70°CRelative HumidityMaximum 95%
