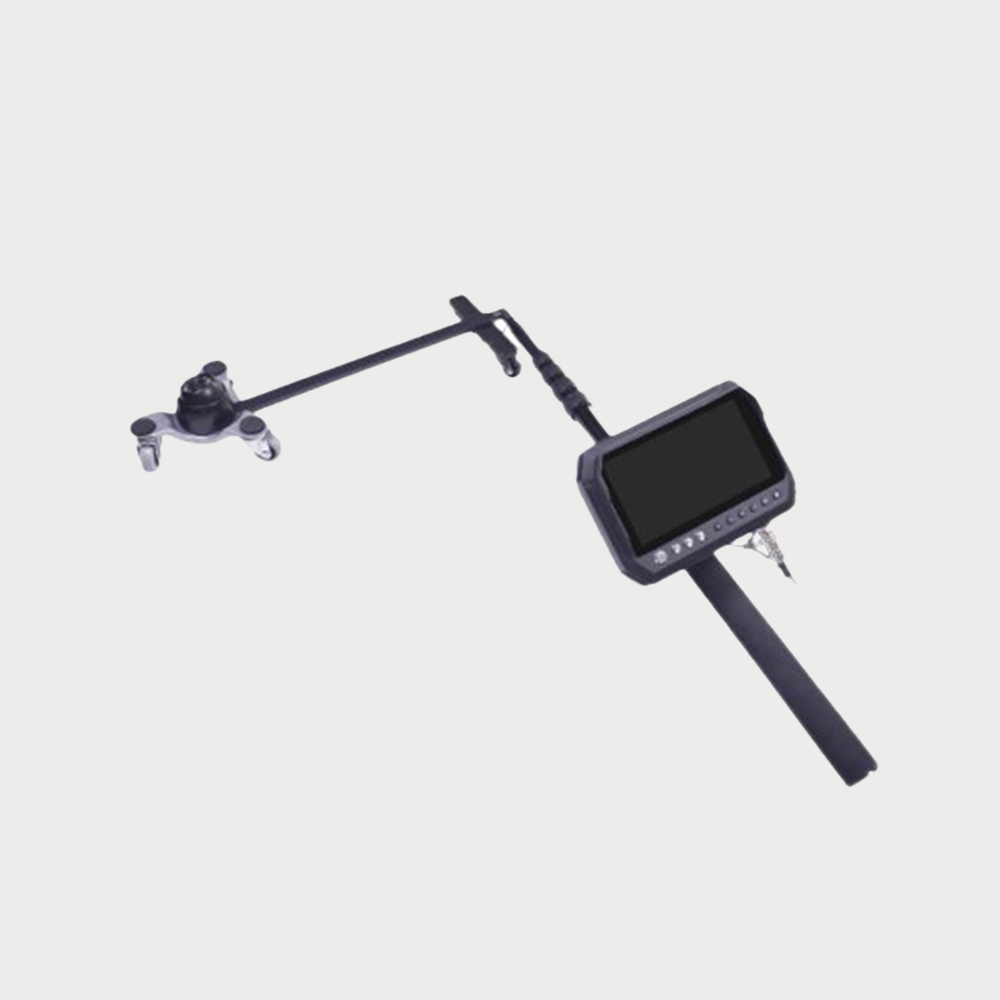

12-LED Dark-Environment Inspection Device

800 wire color camera, true color 1080P output.

• 800-line color camera, true 1080P output.• Multi-purpose, can be used as an aerial search mirror or under-vehicle inspection mirror;• Equipped with a universal chassis for under-vehicle inspection, allowing for quick and easy modifications and additions;• 7″ color LCD display provides clear and vivid images, supports storage recording, and is capable of capturing photos and videos;• The display includes a sunshade for outdoor operations to prevent glare from direct sunlight, and has a waterproof rating of IP55;• Lightweight and portable design, adaptable to various environments, and capable of multi-layered, multi-angle comprehensive inspections.• Features 12 high-brightness lighting sources, enabling observation in completely dark environments.

A multi-purpose, can be used as a high-altitude search mirror, can also be used as a car bottom inspection mirror;

With universal car bottom check chassis, can be quickly replaced and installed;

12 bright lighting sources, can be observed in full black environment;

7 “color LCD display reflects clear and eye-catching images, supports storage and recording, can take photos and videos;

The display comes with shading, can be operated outdoors, prevent direct sunlight, waterproof level up to IP55;

Lightweight and portable design. Ability to adapt to multiple environments. Multi-level and multi-angle comprehensive inspection.

Application scenario

Car security check: In the process of car security check, electronic video under the car inspection mirror can help technicians more clearly observe the situation of the car under the parts, such as the chassis, the bottom pipeline, the suspension system, etc., so as to find safety hazards in time.

Highway safety inspection: In highway safety inspection, electronic video underbody inspection mirrors can help security personnel more conveniently check the bottom of the vehicle, such as whether there are safety hazards such as tire explosion and oil leakage, and improve highway safety coefficient.

Other areas: In addition to automobile security inspection and highway safety inspection, electronic video under-car inspection mirrors can also be applied to other areas of security work, such as construction, aviation and other fields, to help security personnel more convenient to check the hard-to-reach parts, improve security efficiency and accuracy.

Chassis CameraCamera System1/3 inch color CMOS image sensorPixels2 million pixelsViewing Distance≥10 metersDepth of Field20 cm to infinityLighting Source12 high-brightness LEDsWheelsTriangular omni-directional wear-resistant wheels, extended rod ≥50 cm (including camera)Rotation AngleHorizontal 360 degrees rotation, manually adjustableLens0.5 mm F1.2, 90°Minimum Illumination0.01 LuxFlexibility360° space any curl, compatible with IR and white light camerasLED Lights8 infrared supplement lights, automatic lighting, no exposureDepth of Field20 cm to infinityLens0.5 mm F1.2Lens Field of View≥125°Extendable Length2.0 mRetractable Length0.67 mDisplay7-inch HD display, 180 degrees adjustable angleInfrared Assistance Wavelength940 nmResolutionVideo AVI, 19201080; Picture JPG, 19201080FunctionsReal-time display, photo, video, storage, zoom, mirror, supports playback of images and videosOperation ModeButton switchHD Video OutputHDMIScaleFeatures a scaling reference comparison, toggleable via menuNegative FilmColor negative film feature, toggleable via menuLoop Recording3 minutes, 10 minutes, 15 minutesStorage Card CapacityStandard 16 GB, upgradeable to 64 GBInterfacesUSB 2.0 / AV-OUTSupply Voltage12 DCVBattery Capacity12000 mAh rechargeable lithium batteryOperating Time≥6 hours
