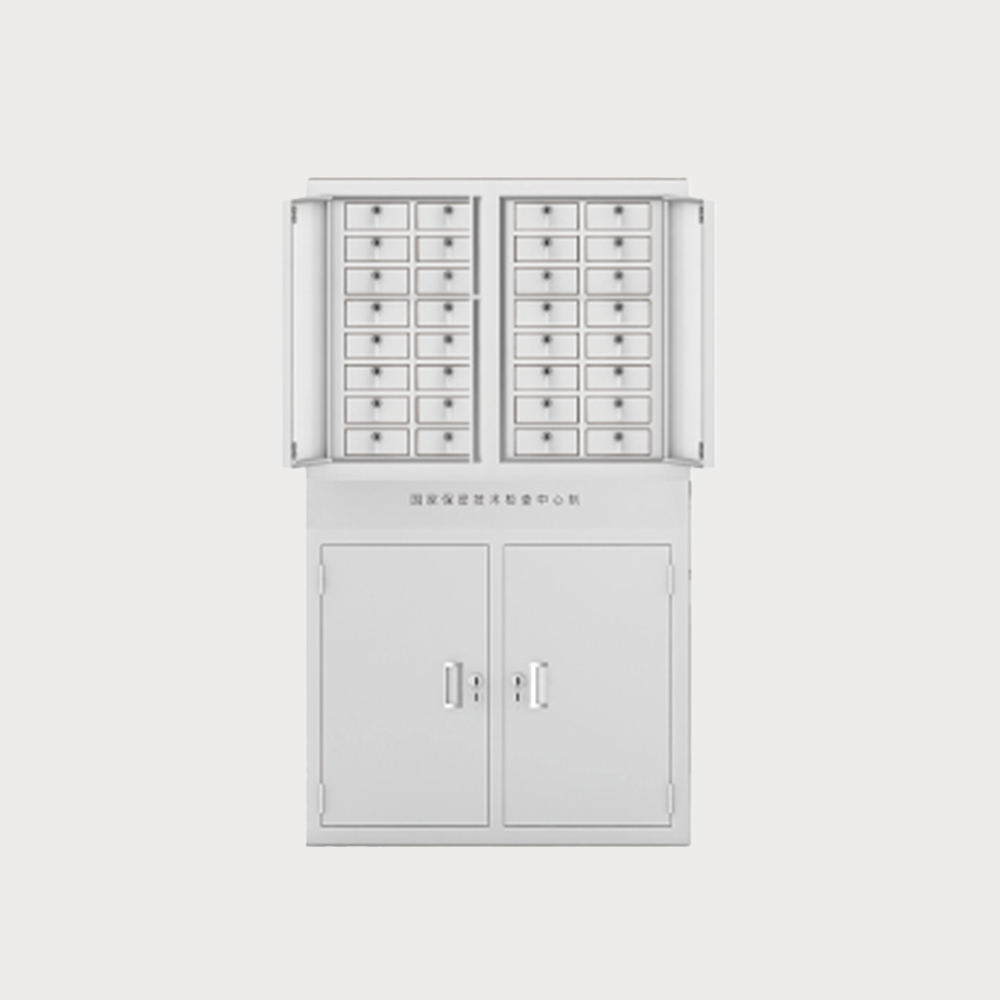

Mobile Phone Signal Blocking Cabinet

• Physical Shielding Technology Utilizes physical shielding technology to effectively block all types of mobile phone communication with base stations when placed inside the cabinet, achieving a shielding efficiency of up to 75dB (within the 800MHz-3GHz frequency range).

• Enhanced Shielding Performance Through a unique double-layer design and three-sided contact structure, the blocking effect on electromagnetic signals is significantly enhanced. This design creates a tighter shielding environment, greatly reducing the risk of signal leakage.

• Independent Storage with Individual Locks Features an innovative double-layer shielding inner liner with independent design on the left and right sides, ensuring that opening one door does not affect the shielding performance of the other side.

• National Confidentiality Technology Testing and Certification Made from high-quality materials with excellent corrosion and wear resistance, certified by the National Security Technology Evaluation Center according to the latest standards, with a shielding efficiency of ≥75dB.

• Electrostatic Powder Coating Process The cabinet surface is treated with electrostatic powder coating for corrosion resistance, enhancing the product’s aesthetic quality and ensuring long-term use in complex environments, with high wear and corrosion resistance.

• Sturdy Thickened Cold-Rolled Steel Plate Constructed from thickened cold-rolled steel plates, formed by cold processing and assembled using CO2 gas shielded welding, resulting in a solid and sturdy cabinet structure.

• Multiple Specifications for Flexible Combination Available in various specifications such as 15 slots, 16 slots, 20 slots, 30 slots, 32 slots, and 48 slots, which can be combined with base cabinets for height adjustment. The buckle connection ensures a more stable structure and convenient combination.

• Wide Application Scenarios Ideal for high-security locations such as government agencies, military, conference rooms, and examination venues, where information security is critical, to achieve centralized management and mandatory shutdown of mobile phone communication functions.

The product adopts strict structural design, internal electroplating treatment, high temperature paint on the surface, high wear resistance and anti-corrosion, strong anti-radiation performance, shielding efficiency is greater than 75dB (800MHZ-3GHZ), can effectively inhibit the leakage of mobile phone signals, and can store multiple mobile phones at the same time, each drawer uses a safe signal lock, independent management. It is suitable for the centralized management of mobile phones in secret places such as party and government organs, confidential departments, and is not affected by some environment.

Shell: The shell is made of 0.9mm high quality electrolytic steel plate and formed by sheet metal bending process. It is composed of top, bottom, left, right and four sides. All the connecting parts are continuously welded by argon arc welding to ensure the overall strength and electromagnetic continuity of the shell.

Cabinet door: The cabinet door is made of 1.2mm high-quality electrolytic steel plate, which is processed by sheet metal bending process to make it have good strength and stiffness. The surface of the cabinet door and the conductive liner is electroplated to ensure that it has good electrical conductivity.

Drawer rack: Drawer rack by the surface after electroplating treatment of the column and partition, the column and partition between the groove positioning, the use of screws fastening molding, to ensure the consistency of the drawer rack.

Drawer: The drawer is made of 0.6mm high-quality tinned steel plate, stamped by a special mold to ensure the same shape and size of the drawer. Both sides of the drawer are provided with a pull out positioning boss, and the rear is provided with a push in place elastic compensation to ensure the accurate and consistent position after the drawer is locked. The drawer is decorated with flannel lining, beautiful and generous, soft and comfortable.
