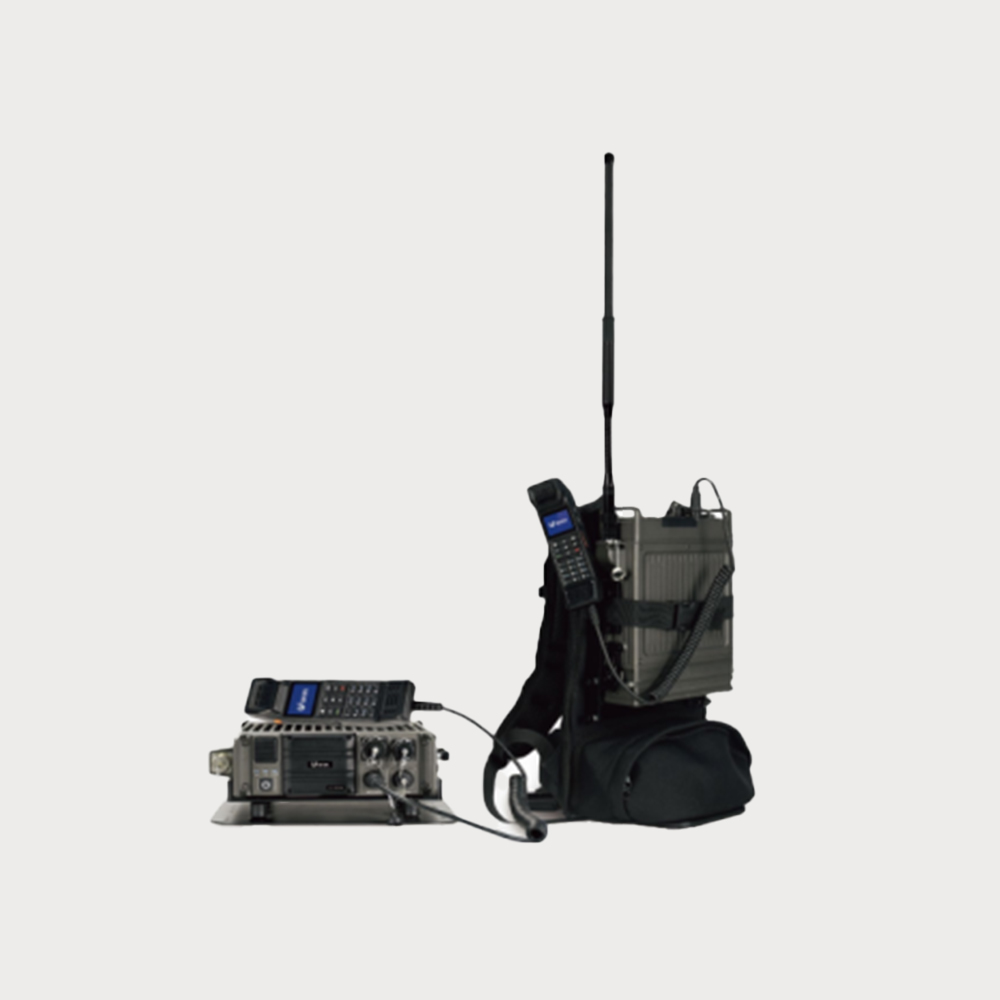

Fast-Deployment Temporary Networking Intercom

Frequency range (optional): 136-174CMHz/350-400MHz/400-480MHz

Number of channels: 3776

Channel spacing: 12.5KHz

Dimensions: 302mm(L)*218mm(W)*76mm(H) (excluding antenna and antenna base)

Weight: ≤5kg (including battery)

Output power: Vehicle: 5-25W (continuous transmission) Backpack: 3-15W (continuous transmission)

Digital Voice Encoder: AMBE

Current consumption: < 6A

4FSK Digital Modulation: 12.5KHz Data Only: 7K60FXD/12.5KHz

Data & Voice: 7K60FXW

Sensitivity: 3% BER ≤ 0.35uV

Frequency stability: ≤0.5ppm

Adjacent tract selectivity: ≥60dB

Intermodulation immunity: ≥65dB

Spurious response: ≥70dB

Blocking: ≥90dB

Rated audio output power: This unit has no horn and can be connected to a microphone

Shock & Vibration: According to MIL-STD-810G

Moisture Resistant: MIL-STD-810G compliant

Dustproof and waterproof rating: IP68
