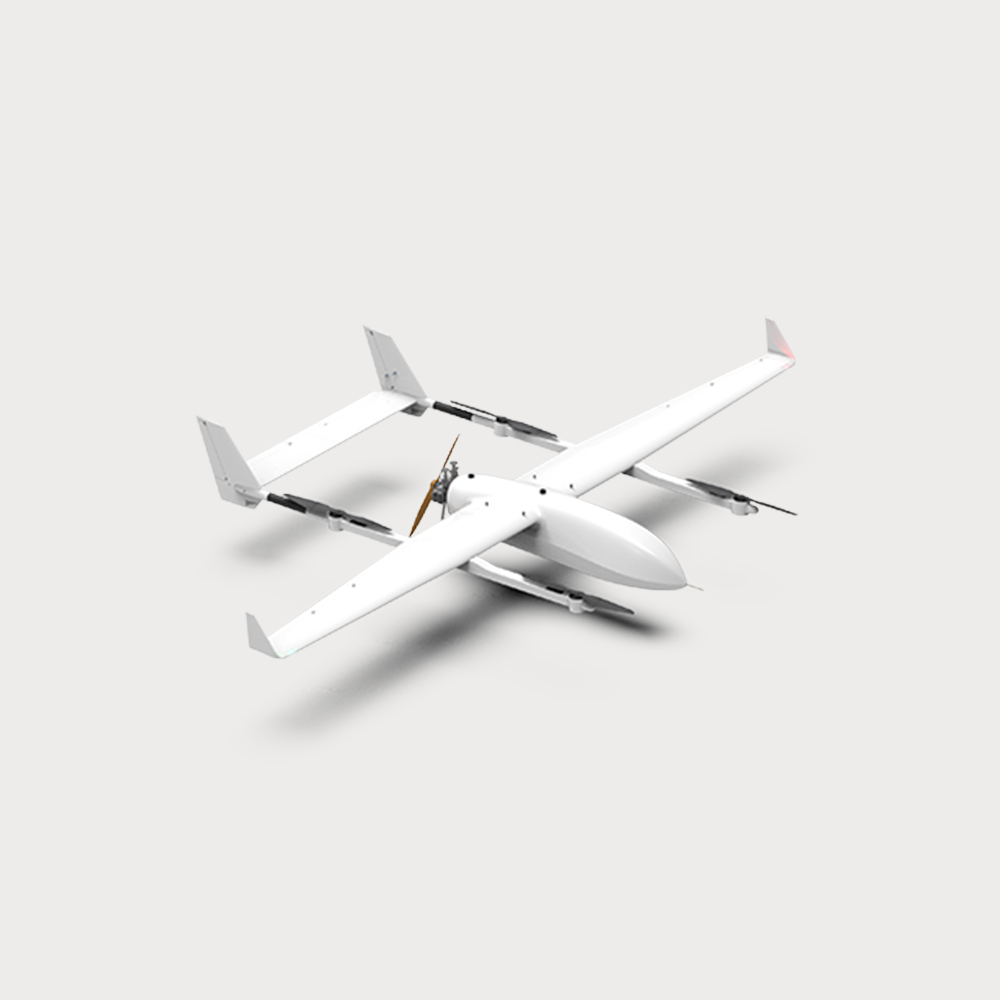

Heavy-Load VTOL Surveillance UAV

Wingspan6300mm

Length3850mm

 Max take-off weight   145kg

Max payload30kg

Endurance8hCruising speed126-144km/h

Ceiling4000m

Working temperature-20℃-50℃

Wind resistance  Level 6(cruising phase)

dual-lens camera

Honeycomb Aerospace UAV with photoelectric camera can be used in inspection, security and

30 times/Al/5km measuring range

emergency search and rescue and other scenarios, the camera integrates high-resolution

infrared camera, 30x high-definition visible light camera and the longest measurement range of

5km laser rangefinder, as well as gyro-stabilized platform, with visible and infrared real-time

video return, point of interest and target positioning, close observation and the ability to work all

day.

three-lens camera(large)

Honeycomb Aerospace UAV with photoelectric camera can be used in inspection, security and

30 times/3km measuring range

emergency search and rescue and other scenarios. Two-axis three-lens target positioning

camera, integrated with a 30x optical zoom visible light camera, a 640x512high-resolution

infrared camera, the farthest measurement range of 3km laser rangefinder, as well as high-

precision gyro-stablized platform, with the ability to work all day.

Communication base station

Honeycomb Aerospace UAV with an airborne high-performance base station can provide users

with high-speed broadband wireless Internet access, which is used in emergency rescue and

post-disaster communication recovery. The base station has a simple and compact design with

low power consumption.
