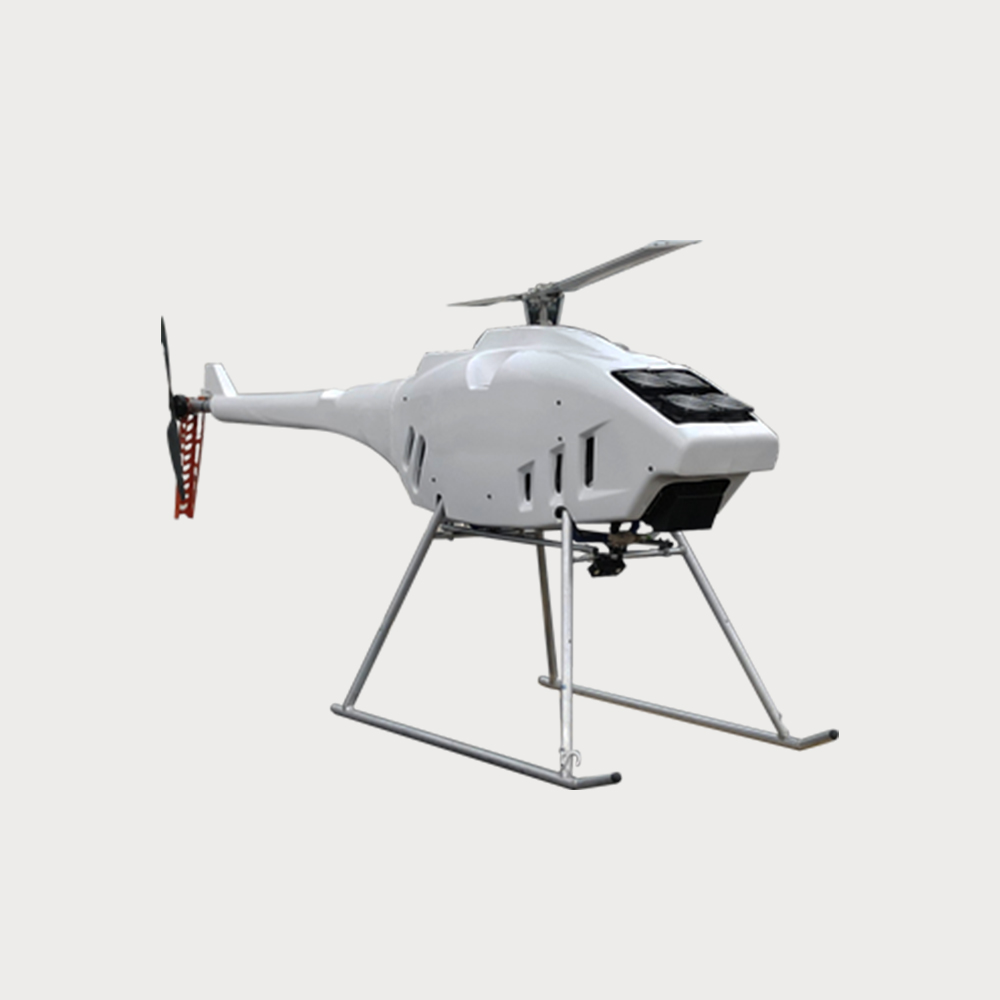

Fuel-Powered Unmanned Helicopter

Dimensions (without main rotor)

3400 x 960 x 1200mm (LxWxH)

Main rotor diameter

3635mm

The tail rotor diameter is 815mm

Maximum take-off weight 160kg

Flight speed 126km/h

Maximum load 75kg (including fuel)

Endurance 250min@ no-load 120min@55kg

Ceiling 3000m

Wind resistance rating

Level 6

Operating temperature -20°C to 50°C

Fuel capacity: 10L internal fuel tank / 30L external fuel tank

Fuel type Gasoline, jet fuel

ENGINE DISPLACEMENT 210CC (Twin)

three-lens camera(large)30 times/3km measuring range

Honeycomb Aerospace UAV with photoelectric camera can be used in inspection, security and emergency search and rescue and other scenarios. Two-axis three-lens target positioning camera, integrated with a 30x optical zoom visible light camera, a 640×512 high-resolution infrared camera, the farthest measurement range of 3km laser rangefinder, as well as high- precision gyro-stablized platform, with the ability to work all day.
