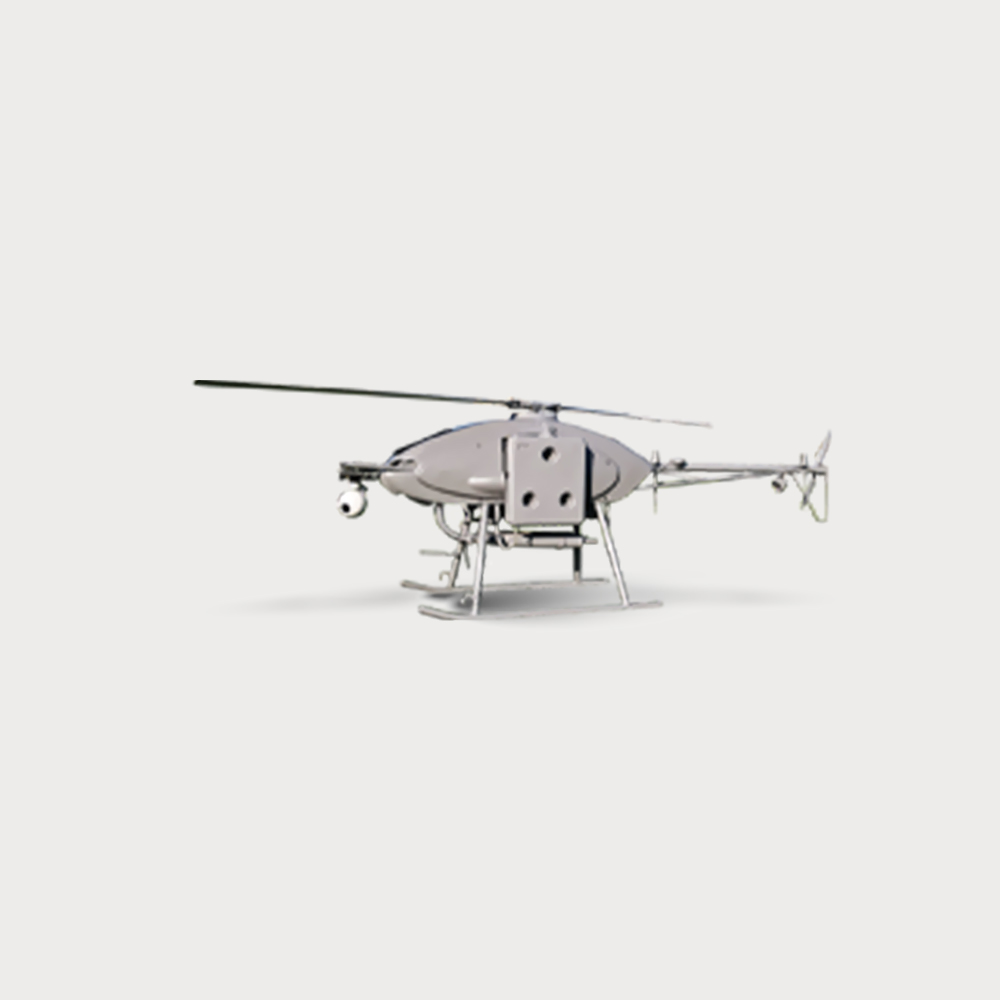

Aerial Relay Unmanned Helicopter

Dimensions (without main rotor)

2400 x 620 x 900mm (LxWxH)

Main rotor diameter

2780mm

The tail rotor diameter is 480mm

Maximum take-off weight 85kg

Flight speed 108km/h

Maximum load 45kg (including fuel)

Endurance 300min@ no-load 150min@30kg

Ceiling 5500m

Wind resistance rating

Level 6

Operating temperature -20°C to 50°C

Fuel capacity: External fuel tank 16L

Fuel type Gasoline, jet fuel

ENGINE DISPLACEMENT 210CC (SINGLE)

three-lens camera(large)30 times/3km measuring range

Honeycomb Aerospace UAV with photoelectric camera can be used in inspection, security and emergency search and rescue and other scenarios. Two-axis three-lens target positioning camera, integrated with a 30x optical zoom visible light camera, a 640×512 high-resolution infrared camera, the farthest measurement range of 3km laser rangefinder, as well as high- precision gyro-stablized platform, with the ability to work all day.
