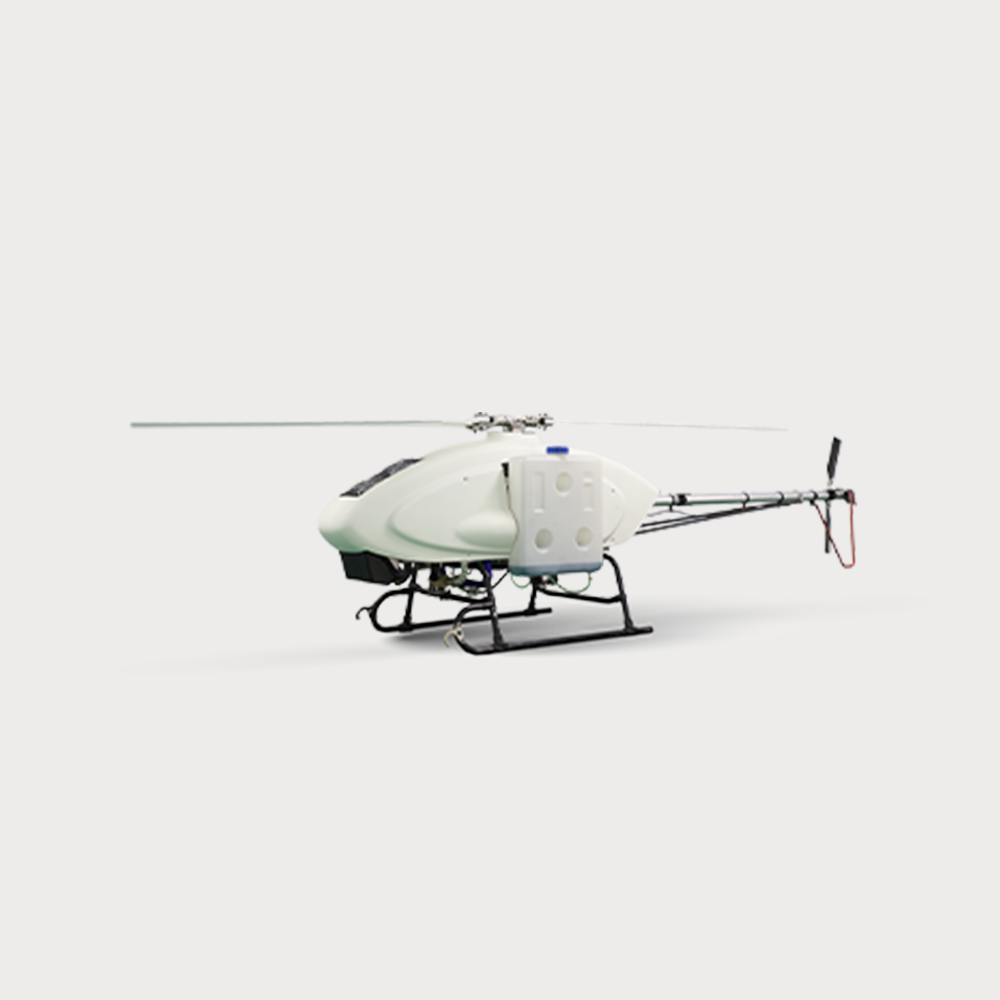

Heavy-Load Maritime Patrol Unmanned Helicopter

Dimensions

2300 x 620 x 900mm (LxWxH)

The diameter of the main rotor is 2680mm

Tail rotor diameter 470/485mm

Maximum take-off weight 75kg

Flight speed 126km/h

Maximum load 35kg (including fuel)

Battery life 200min@20kg

Ceiling 3500m

Wind resistance level 6

Operating temperature -20°C to 50°C

Fuel capacity: External fuel tank 16L

Fuel type Gasoline, jet fuel

Engine displacement: 170cc (single)

three-lens camera(large)30 times/3km measuring range

Honeycomb Aerospace UAV with photoelectric camera can be used in inspection, security and emergency search and rescue and other scenarios. Two-axis three-lens target positioning camera, integrated with a 30x optical zoom visible light camera, a 640×512 high-resolution infrared camera, the farthest measurement range of 3km laser rangefinder, as well as high- precision gyro-stablized platform, with the ability to work all day.
