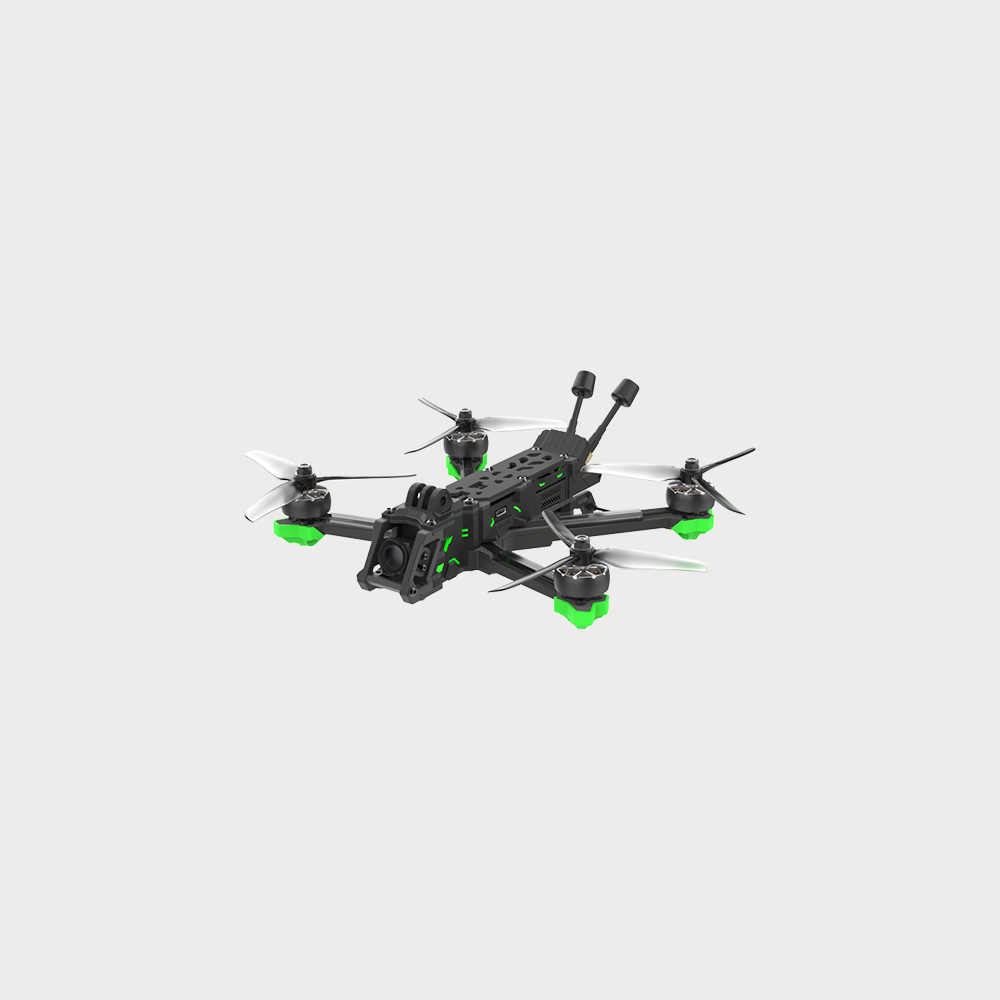

XING2 Motors FPV UAV with Secured Battery Plug

JR-IF1239

Maximum horizontal flight speed: 190km / h

Maximum altitude take-off: 3200m

Takeoff weight: DC type (695±10g) / Wide X type (693±10g)

Maximum load: 500g

Maximum hovering time: about 7.5 minutes

Maximum cruise time: about 8 minutes

Maximum wind resistance level: 7 levels

Working environment temperature: -10°C—40°C

Number of antennas: Dual antennas

JR-IF1240

Structure: DC type/wide X type

Weight: DC type (485±5g) / Wide X type (480±5g)

Wheelbase: DC type (262±2mm) / Wide X type (255±2mm)

Size: DC type (209×162×36±2mm) / Width X type (196×164×36±2mm)

Power configuration

Motor: XING2 2506 1500KV

Propeller: HQ 6×2.5×3

Electrical configuration

Flight controller: BLITZ Mini F7 FC

ESC: BLITZ Mini E55 4-IN-1 ESC

Image transmission: DJI O3 Air Unit Air Unit

Camera: DJI O3 Air Unit Air Unit

Flight parameters

Maximum horizontal flight speed: 180km / h

Maximum altitude take-off: 3200m

Takeoff Weight: DC type (756±10g) / Wide X type (751±10g)

Maximum load: 500g

Maximum hovering time: about 8.5 minutes

Maximum cruise time: about 9 minutes

Maximum wind resistance level: 7 levels

Working environment temperature: -10°C—40°C

Number of antennas: Dual antennas
