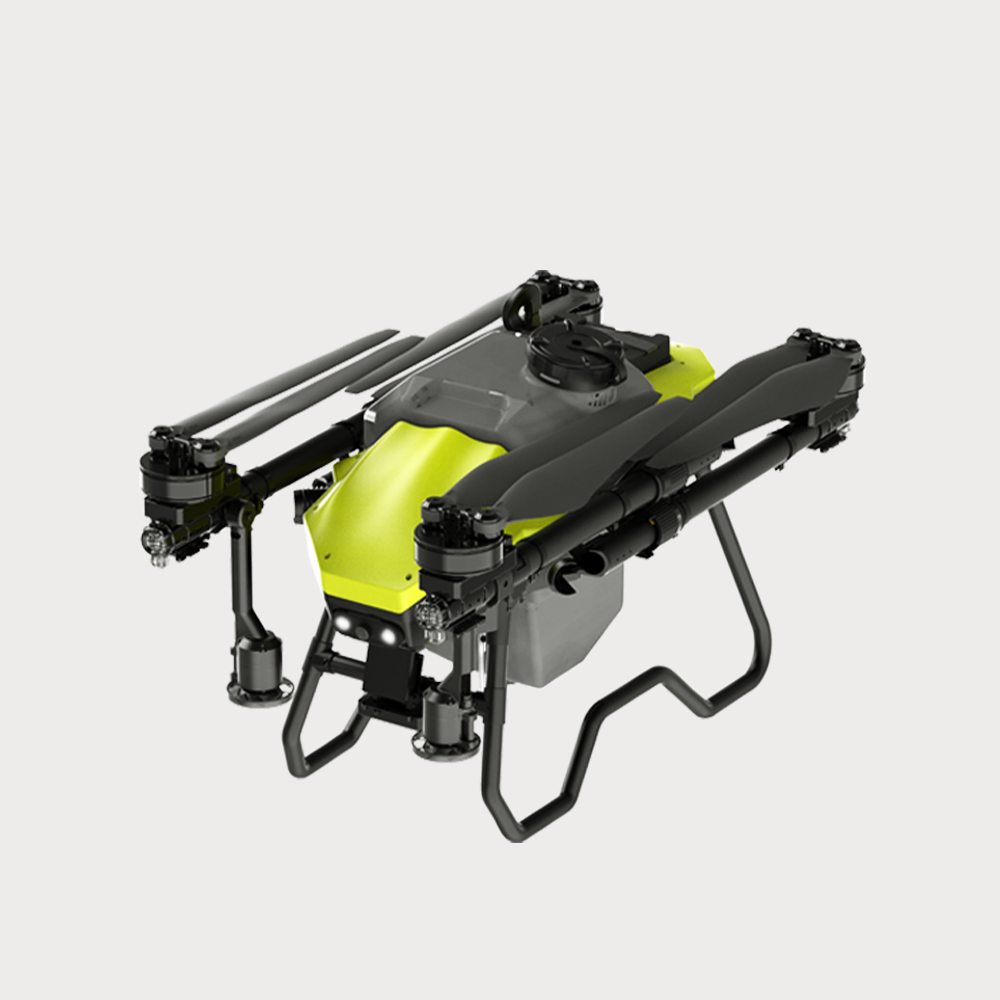

JR-JAS81 Agricultural Spraying Drone 16L

developed dimension:1140*1300*575mm

folded size:1010*610*575mm

diagonal wheelbase:1480mm

working voltage:58.8V(14S)

Weight:16kg

load:10L

flight speed:3-8m/s m/s

spray width:3-5m/s m/s

Maximum takeoff weight:38kg

sprinkler system:pressure nozzle/centrifugal nozzle

pump maximum pressure:0.8mpa

Spray Flow:4-8/min

flight time:No-load(20-25min) full load(7-10min)

Operation efficiency:8-10(min)Acres/mu/Min min

Battery:14S18000mah

charging time:15-30min/min

charging cycle:300-500times

daily efficiency:300-600Acres acres

Material:carbon fiber/nylon fiber/aluminum alloy

packing1060*660*625mm

Operating voltage range:Master: 4.8V5.3V

power supply module: input 11.1V50V (recommended 3S-12SLipo); maximum output current 3A @ 5V

GPS module: 5V

LED lamp module: 5V

battery voltage: 3-12s

power consumption: <5W

working environment temperature:-10 ℃60 ℃

Storage Ambient Temperature:-25 ℃60 ℃

Weight:master controller: 87g

GPS/magnetic compass module: 45g

LED lamp module: 14g

PMU:41g

Size:main controller: 72.6*44.6*22.8mm

GPS/magnetic compass module: 62mm (diameter)

LED lamp module: 24*24*8mm

PMU:53.4*34.4*14.5mm

flight characteristics:

hovering accuracy: horizontal direction: ± 1.5m vertical direction: ± 0.5m

maximum tilt angle: 30 °

maximum yaw speed: 150 °/s

Maximum vertical speed: 6 m/s

Maximum wind resistance: continued wind: level 4 gust: level 5
