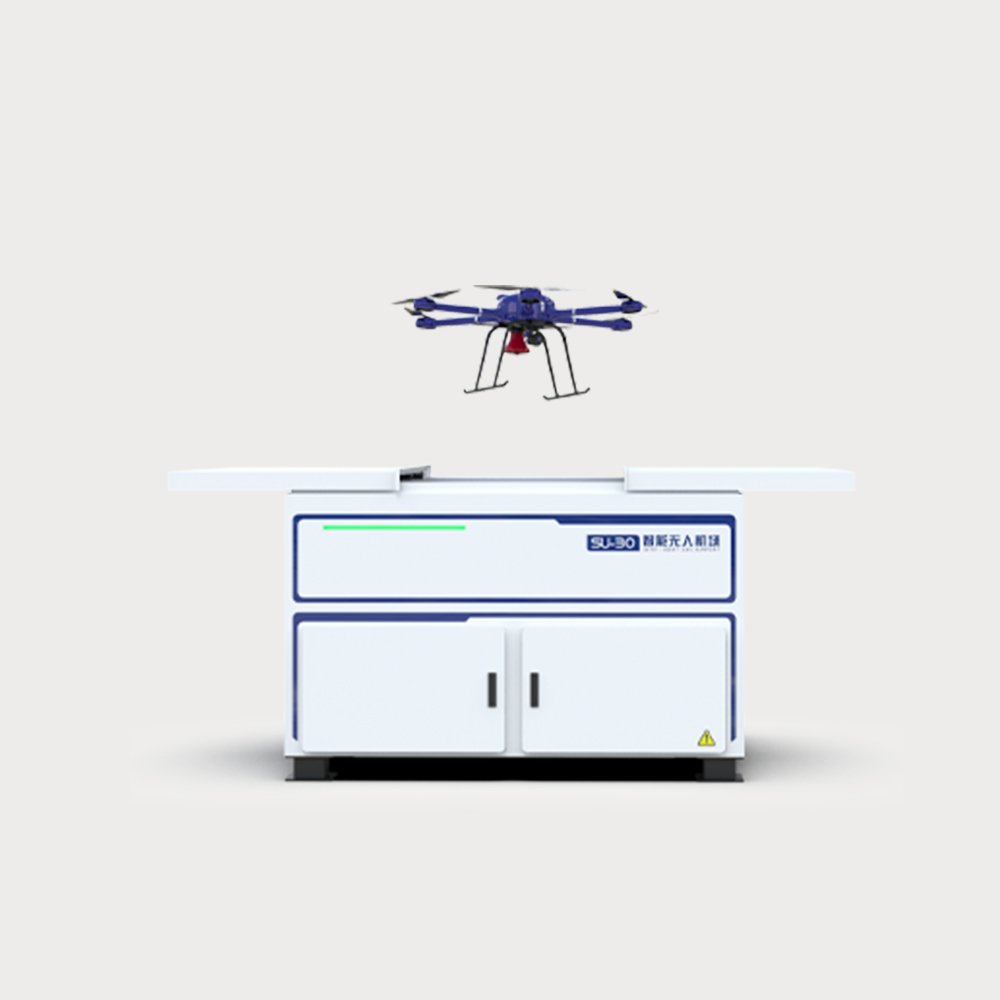

Multi-Rotor UAV Airport with Multi-Mode Datalink

Flying platform

Number of rotors 6

The wheelbase is 1185mm

Maximum take-off weight 15kg

The maximum load weight is 5kg

Battery life 55min

Cruising speed 0-15m/s

Ceiling 5000m

Wind Resistance Level 6 (Cruising Phase)

The radius of flight operation is 10km

Intelligent drone cabin

Size: 2150×1700×1500mm (L×W×H

Weight 850kg

Input voltage 220V

power

2500W (without temperature control)

3000W (independent temperature control)

Communication mode: 4G/5G/private network

Operating temperature

-20°C—55°C (including temperature control equipment); -10°C—55°C (standard)

Multifunctional monitoring station

Environmental Perception It can sense temperature, humidity, wind speed, wind direction, rain and snow

Height 2850mm

Weight 60kg

Input voltage 220V
