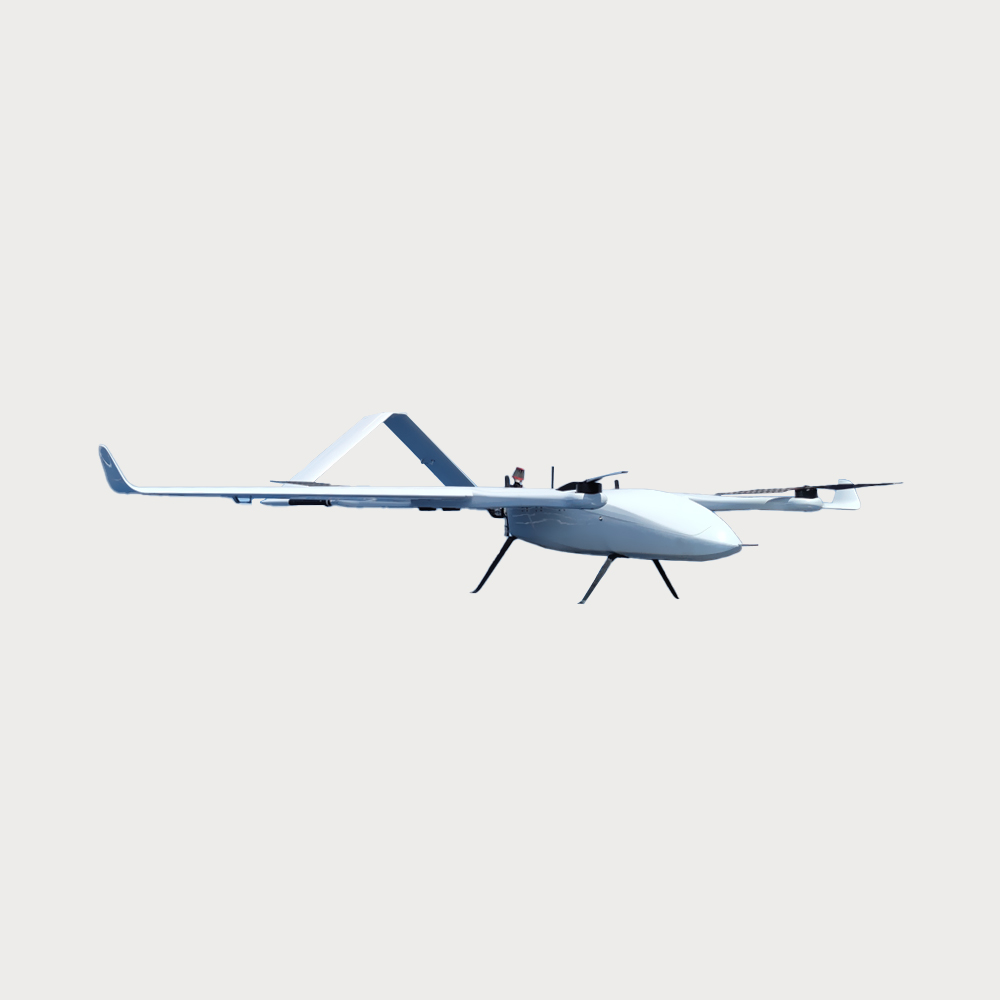

High-Payload Long-Endurance Rescue UAV

Fuselage length：3.62m

Wingspan：6.52m

Maximum take-off weight：135kg

Storage capacity：280L (empty)

Differential positioning system：RTK

Quick release design：Module quick release combination

Airbox size：2410×1210×1450mm

Battery life：16h@5kg； 6h@25kg ; 2h@40kg (Gasoline EFI Version)

Cruising speed：110～150km/h

Practical ceiling：5500m

Maximum take-off altitude：3200m (on demand)

Maximum wind resistance：12m/s (level 6 wind), level 4 wind during takeoff and landing

Use environment：-20℃~+50℃; Prevent light rain

Take-off and landing mode：VTOL
