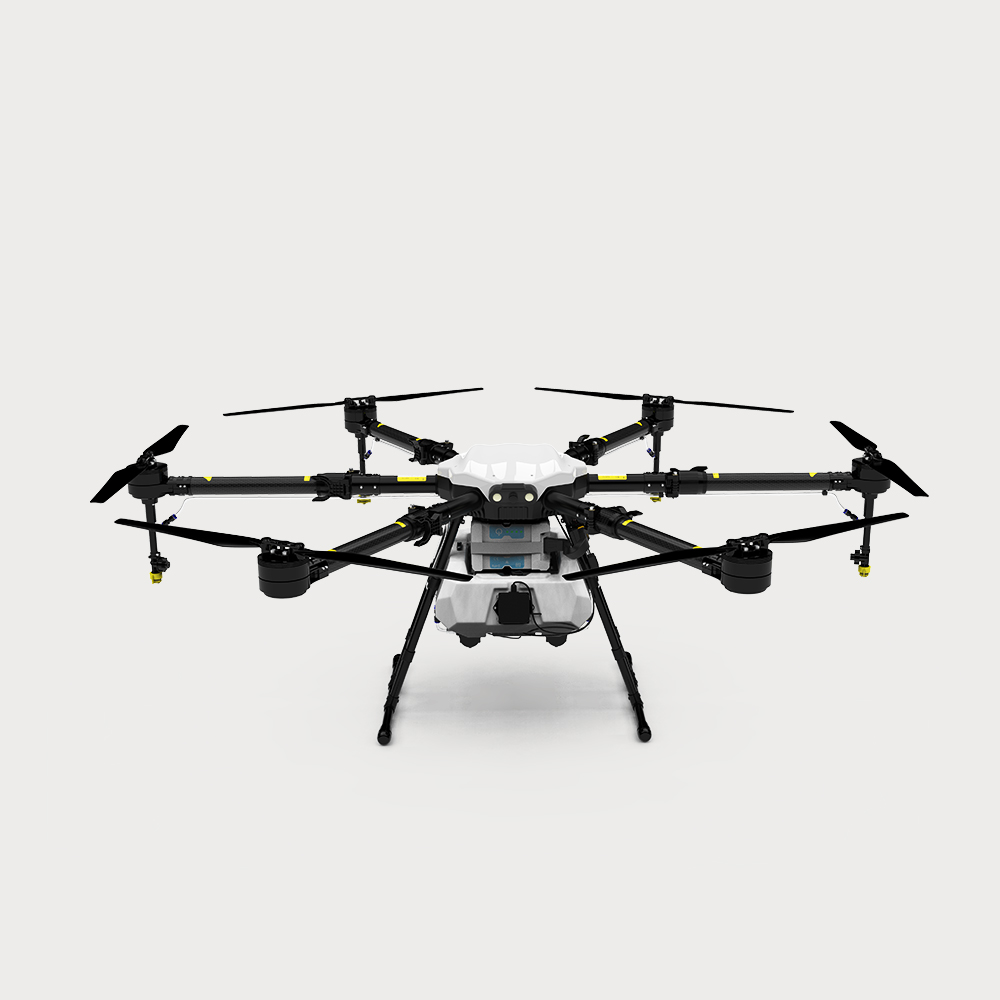

JR-JAS80 Agricultural Spraying Drone 22L

developed dimension:1920*1680*600mm

folded size:1160*1080*600mm

diagonal wheelbase:1800mm

working voltage:58.8V(14S)

Weight:17kg

load:22L

flight speed:3-8m/s m/s

spray width:3-5m/s m/s

Maximum takeoff weight:46kg

sprinkler system:pressure nozzle

pump maximum pressure:0.8mpa

Spray Flow:4-8/min

flight time:No-load(20-25min) full load(7-10min)

Operation efficiency:1.5-3Acres/mu/Mmin min

Battery:14S 20000mah

charging time:15-30min/min

charging cycle:300-500times

daily efficiency:500-800Acres acres

Material:carbon fiber/nylon fiber/aluminum alloy

packing1700*2000*620mm

Operating voltage range:Master: 4.8V5.3V

power supply module: input 11.1V50V (recommended 3S-12SLipo); maximum output current 3A @ 5V

GPS module: 5V

LED lamp module: 5V

battery voltage: 3-12s

power consumption: <5W

working environment temperature:-10 ℃60 ℃

Storage Ambient Temperature:-25 ℃60 ℃

Weight:master controller: 87g

GPS/magnetic compass module: 45g

LED lamp module: 14g

PMU:41g

Size:main controller: 72.6*44.6*22.8mm

GPS/magnetic compass module: 62mm (diameter)

LED lamp module: 24*24*8mm

PMU:53.4*34.4*14.5mm

flight characteristics:

hovering accuracy: horizontal direction: ± 1.5m vertical direction: ± 0.5m

maximum tilt angle: 30 °

maximum yaw speed: 150 °/s

Maximum vertical speed: 6 m/s

Maximum wind resistance: continued wind: level 4 gust: level 5
