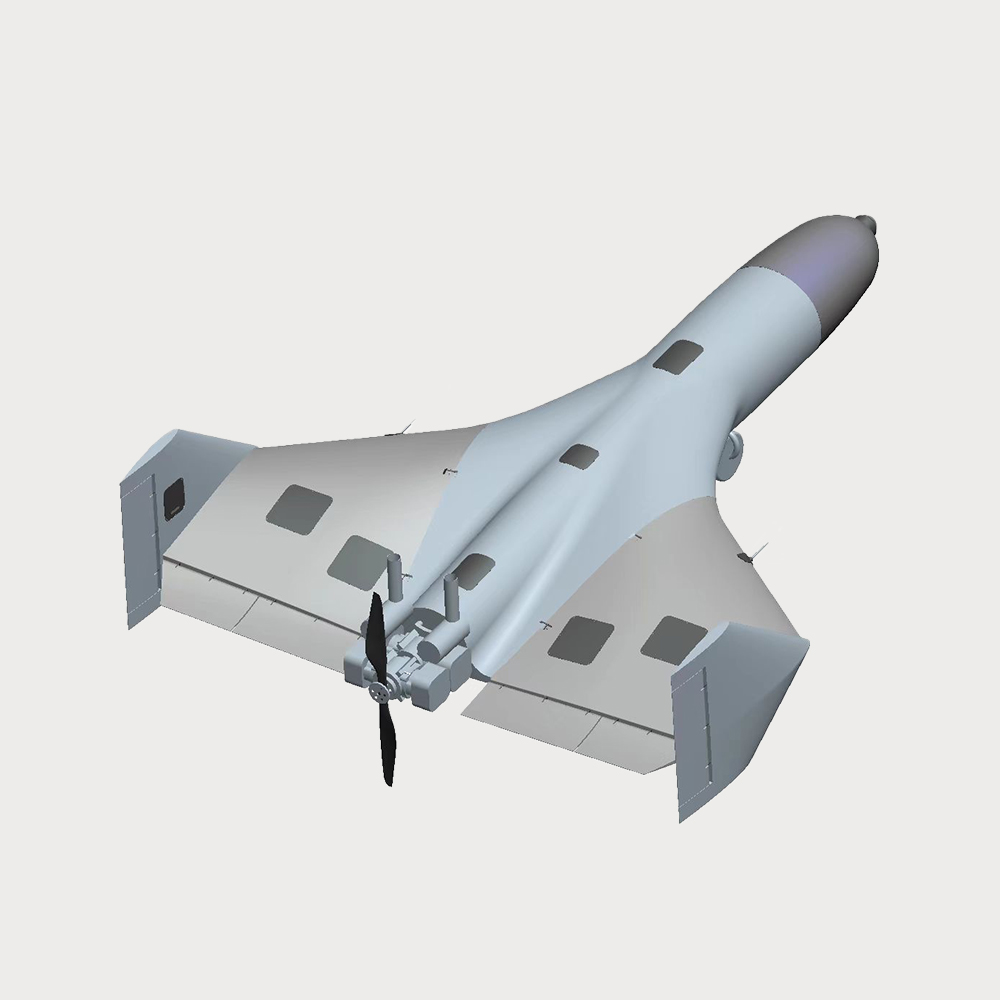

JR1192 UAV cruising delta wing drone

Wingspan : 2500 mm

Fuselage length : 3500 mm

Empty weight (without oil): 62.5 kg

Load capacity: 50 kg

Maximum take-off weight: 200 kg

IP rating: IP54

Operating temperature: -25°C ~60°C

Minimum turning radius : 450 m

Rate of climb: 5 m/s

Pitch Angle: 15° Roll Angle: 28° Attack Angle of Terminal Guidance : 15° ~70° Stall Speed: 40 m/s (144 km/h)

Cruising speed: 53 m/s (190 km/h)

Maximum speed: 62 m/s (223 km/h)

Wind Resistance Rating: 7

Engine cruising speed: 4900~5200

Maximum engine speed: 6400

Cruising fuel consumption: 10~12 L

Wingspan : 2500 mm

Fuselage length : 3500 mm

Empty weight (without oil): 62.5 kg

Load capacity: 50 kg

Maximum take-off weight: 200 kg

IP rating: IP54

Operating temperature: -25°C ~60°C

Minimum turning radius : 450 m

Rate of climb: 5 m/s

Pitch Angle: 15° Roll Angle: 28° Attack Angle of Terminal Guidance : 15° ~70° Stall Speed: 40 m/s (144 km/h)

Cruising speed: 53 m/s (190 km/h)

Maximum speed: 62 m/s (223 km/h)

Wind Resistance Rating: 7

Engine cruising speed: 4900~5200

Maximum engine speed: 6400

Cruising fuel consumption: 10~12 L

Maximum flight range: 1620 km

Maximum battery life: 8-9 h

Maximum flight altitude : 4500 m

Fuel Code: GB 95#

Oil ratio: 2T two-stroke lubricant (40:1)

Fuel tank capacity: 108 L

Engine displacement: 550cc

Engine type: EFI version, with starting (power generation output DC 1000W 28V) propeller

Leaf size: 33 inches

Take-off mode: rocket-boosted take-off

TOTAL BOOSTER THRUST: 20 KN ( Operating temperature 20°C)

Booster working time: 2.0±0.2s ( working temperature 20°C)

Booster weight: ≤23kg (without stand)

Anti-interference ability: 1. Broadband frequency hopping in communication frequency bands

2. Positioning system: multi-array element and multi-band satellite search and positioning

Strike mode: 1. Dual visible light seeker tracking strike

2. Fixed coordinate position strike
