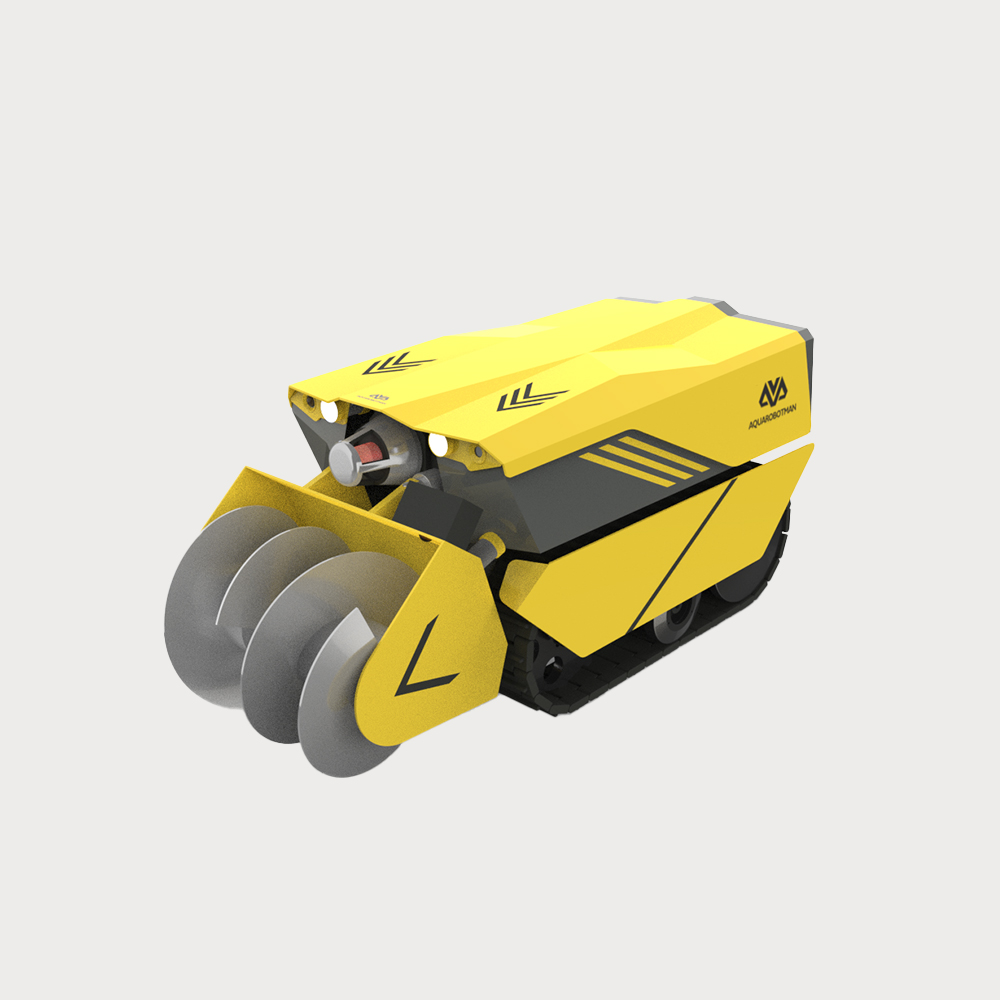

Pipeline Dredging ROV 700-3000mm
- $ Inquiry
- 0 In Stock Now JR-QSX1259
-
QUANTITY
- Contact Online
Weight
120kg
Volume
475mm × 998mm × 440mm
Angle of climb
20°
Material
316 stainless steel, waterproof and corrosion resistant design
Operating temperature
-10°C~40°C
Operating depth
Up to 30m deep
Applicable pipe diameter
Suitable for 700~3000mm diameter pipe
Force of traction
Two 600W waterproof motors with a maximum traction of 100kgf
Sewage absorption capacity
High power stranded suction head with suction pump, suction range up to 9m, suction capacity up to 50m3/hr
Communication
Communication cable tensile 500kgf, can achieve safe and reliable communication
Hd camera
Ultra HD 4K detection camera for real-time detection
Meter counter
The centimeter-level high precision meter device can accurately locate the position of the robot in the pipeline
Sonar
360-degree ring scan sonar can accurately measure the thickness of underwater silt and show the effect of dredging in real time
Carrier module
Sonar, camera, stranding module, crushing module, stranding module
