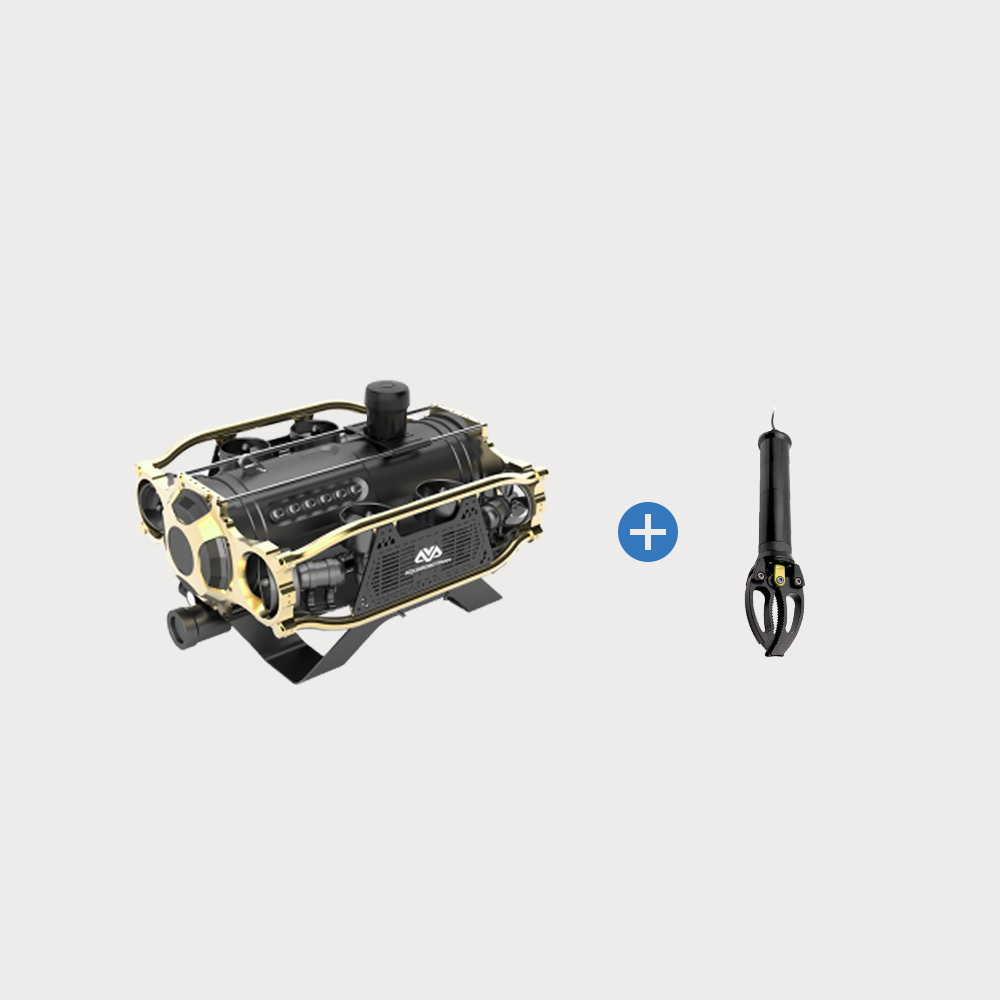

Modular Underwater ROV Platform

Weight in air

30kg

Volume

470mm x 620mm x 300mm

Withstand pressure depth

500m

Thrusters

6 thrusters (4 horizontal, 2 vertical)

Front camera & Lights

Resolution

1920*1080

Zoom

4x optical zoom

Focusing

Auto-focusing

Focal length

2.8mm~12mm

Pitch range

±60°

Lights

headlights 2*3500LM; Small light 2*1500LM

Wire and cable

Length

Standard 100m

Diameter

11.6mm

Weight in water

Zero buoyancy

Sensor

Portable equipment

Single-beam sonar P360;

multi-beam sonar M750D;

side-scan sonar SS60 single-degree of freedom robotic arm G300;

five-degree of freedom robotic arm RV5 multi-beam 1200ik;

underwater = dimensional laser USL-100;
