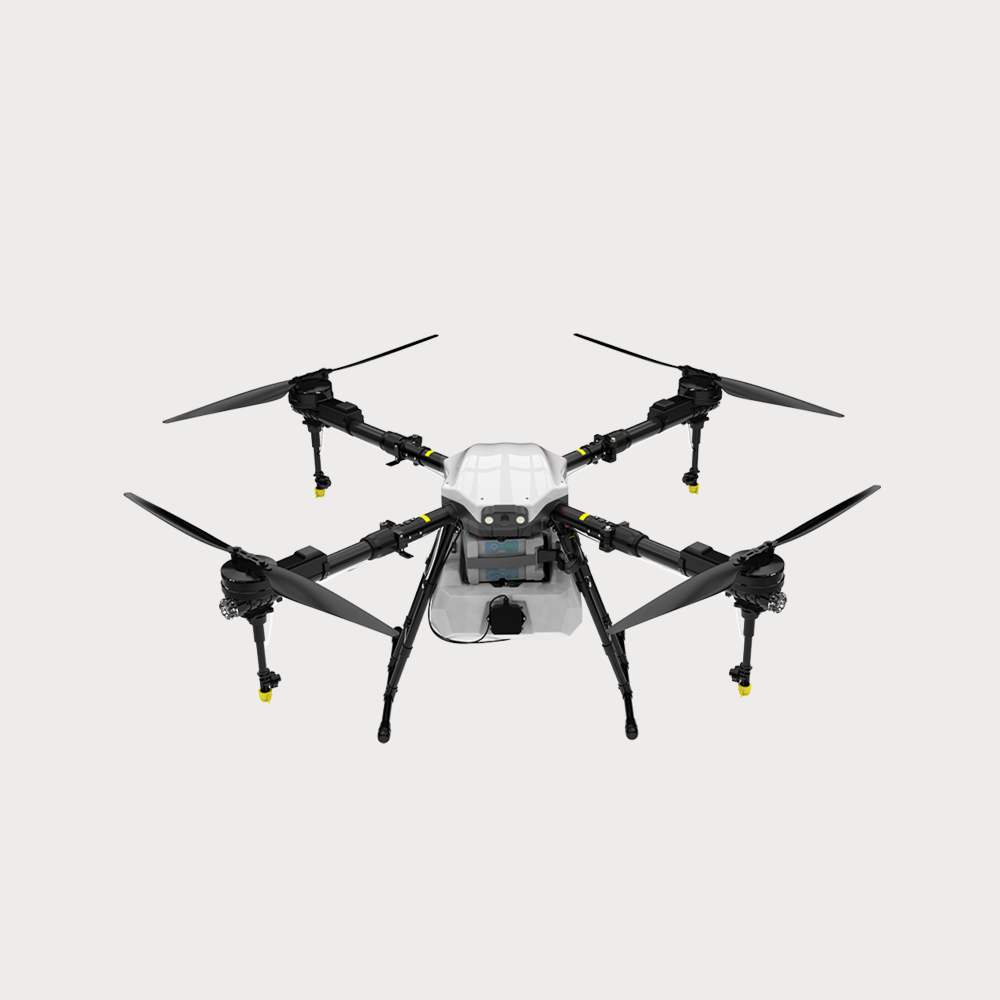

JR-JAS77 Agricultural Spraying Drone 22L

nozzle adopts pressure spraying, flexible adjustment of flow andatomization effect as standard fan-type nozzle, precision wear-resistant.The whole machine is equipped with 4 nozzles, whichare located under the motor. The down-flowing gas produced bythe rotor acts on the atomized agent, allowing the agent toreach the roots of the plant and penetrate into the back of thestems and leaves.

JR77technical parameters:developed dimension:1100*1100*600mm

diagonal wheelbase:1400mm

working voltage:58.8V(14S)

Weight:13.5kg

flight speed:3-8m/s m/s

load:22L

spray width:3-5m/s m/s

Maximum takeoff weight:43kg

pump maximum pressure:0.8mpa

Spray Flow:4-8/minflight time:No-load(20-25min)full load(7-10min)Battery:14S 20000mah

Operation efficiency:1.5-3Acres/mu/Mmin min

charging time:15-30min/min

sprinkler system:pressure nozzlecharging cycle:400-600times

Material:carbon fiber/nylon fiber/aluminum alloydaily efficiency:500-800Acres acres

packing box:700*700*620mm

folded size:650*650*600mm

Operating voltage range:Master: 4.8V5.3V

power supply module: input 11.1V50V (recommended 3S-12SLipo); maximum output current 3A @ 5V

GPS module: 5V

LED lamp module: 5V

battery voltage: 3-12s

power consumption: <5W

working environment temperature:-10 ℃60 ℃

Storage Ambient Temperature:-25 ℃60 ℃

Weight:master controller: 87g

GPS/magnetic compass module: 45g

LED lamp module: 14g

PMU:41g

Size:main controller: 72.6*44.6*22.8mm

GPS/magnetic compass module: 62mm (diameter)

LED lamp module: 24*24*8mm

PMU:53.4*34.4*14.5mm

flight characteristics:

hovering accuracy: horizontal direction: ± 1.5m vertical direction: ± 0.5m

maximum tilt angle: 30 °

maximum yaw speed: 150 °/s

Maximum vertical speed: 6 m/s

Maximum wind resistance: continued wind: level 4 gust: level 5
