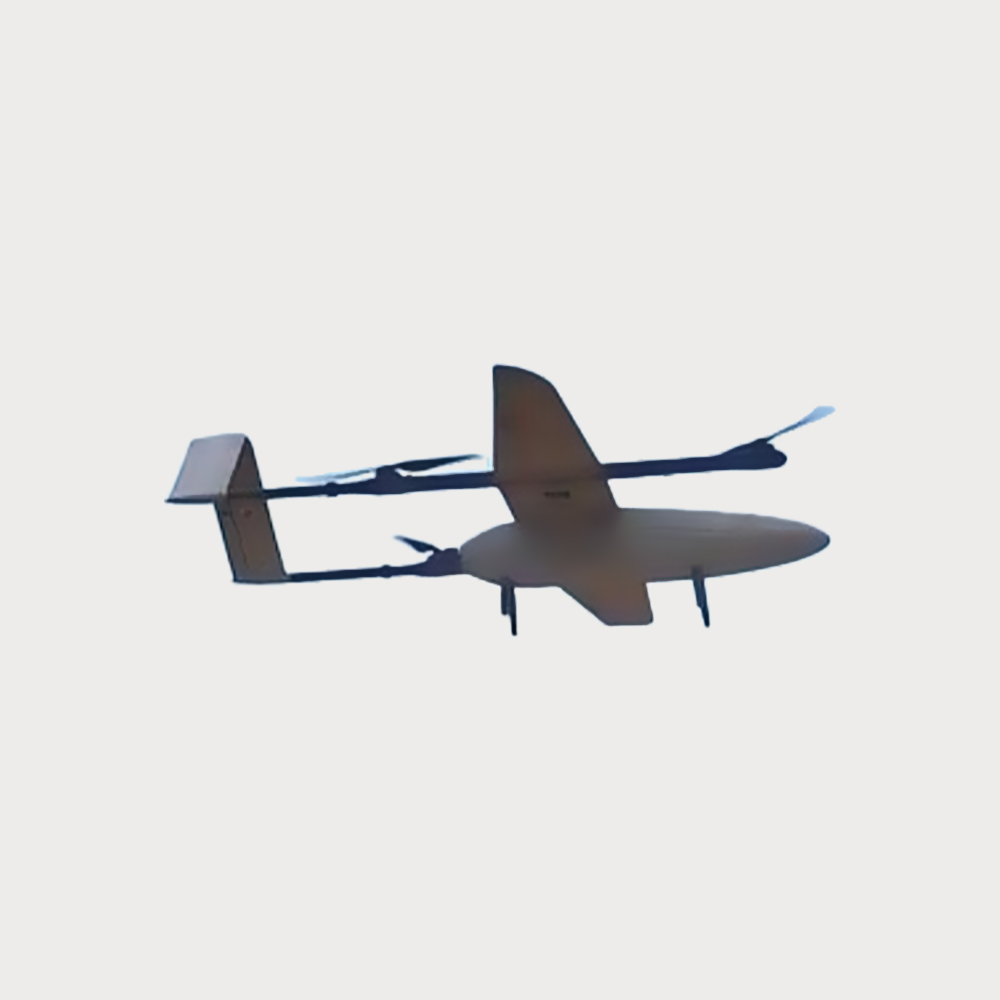

Oil Pipeline Patrol VTOL UAV

Fuselage length：2.84m

Wingspan：4.91m

Maximum take-off weight：64kg

Storage capacity：80L (empty)

Differential positioning system：RTK

Quick release design：Module quick release combination

Airbox size1700×840×730mm (body box)2000×400×270mm (power boom box)

Battery life：10h@5kg (gasoline EFI)

Cruising speed：80～110km/h

Practical ceiling：5000m

Maximum take-off altitude：3000m (on demand)

Maximum wind resistance:12m/s (level 6 wind

Use environment:-20℃+65℃; Prevent light rain

Take-off and landing mode:VTOL
