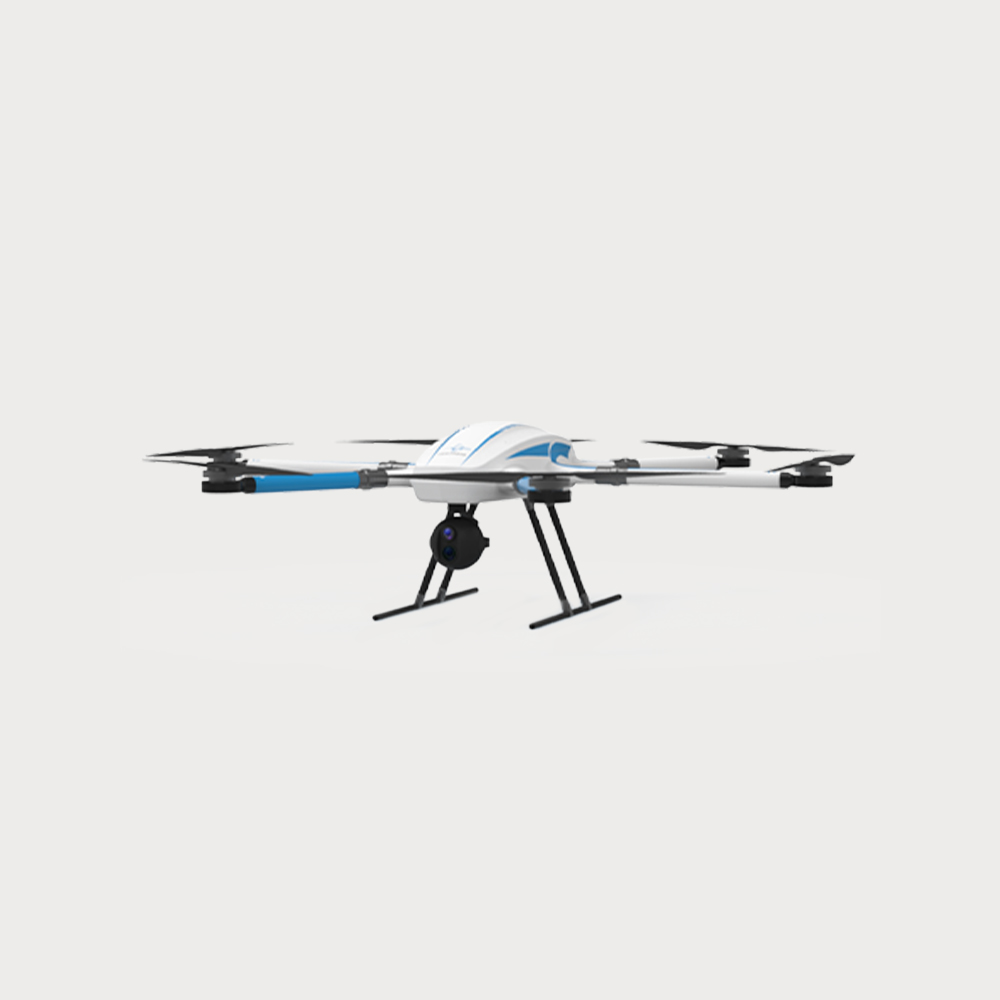

Hybrid-Power Multi-Payload UAV Platform

Wheelbase 1560mm

Maximum take-off weight 19.8kg

Mission payload 4kg

Flight speed 15m/s

Endurance 180min@ no load/150min@2kg

Control the radius

10km/20km/30km/50km (optional)

Take-off and landing mode VTOL

Ceiling 1500m

Wind resistance level 6

Box size

98cm x 72cm x 60cm

dual-lens camera

Honeycomb Aerospace UAV with photoelectric camera can be used in inspection, security and 40x/AI emergency search and rescue and other scenarios, the camera integrates high-resolution infrared camera,40x high-definition visible light camera and gyro-stabilized platform, and adopts advanced Al recognition and tracking technology to identify and track targets such as people and vehicles, with visible light and infrared real-time video transmission.close observation and the ability to work all day.

three-lens camera

Honeycomb Aerospace UAV with photoelectric camera can be used in inspection, security and 30x/Al emergency search and rescue and other scenarios, the camera integrates high-resolution infrared camera,30x high-definition visible light camera and the longest measurement range of 1.5km laser rangefinder, and adopts advanced Al recognition and tracking technology to identify and track targets auch as people and vehicles, with visible light and infrared real-time video return. Point of interest and target positioning, close observation, and the ability to work all day.

Tilt camera

Honeycomb Aerospace UAV with tilt mapping camera, can achieve high precision, wide area coverage and high efficiency aerial photography task. It can adapt to aerial photography tasks in a variety of weather and natural environment, and can be used in surveying and mapping of land info, such as emergency and aerial photography, and applied to land ownership confirmation, real estate registration, pile measurement, highway surveying and other scenes.Modularized design of the camera body and components, equipped with multiple sensors.
