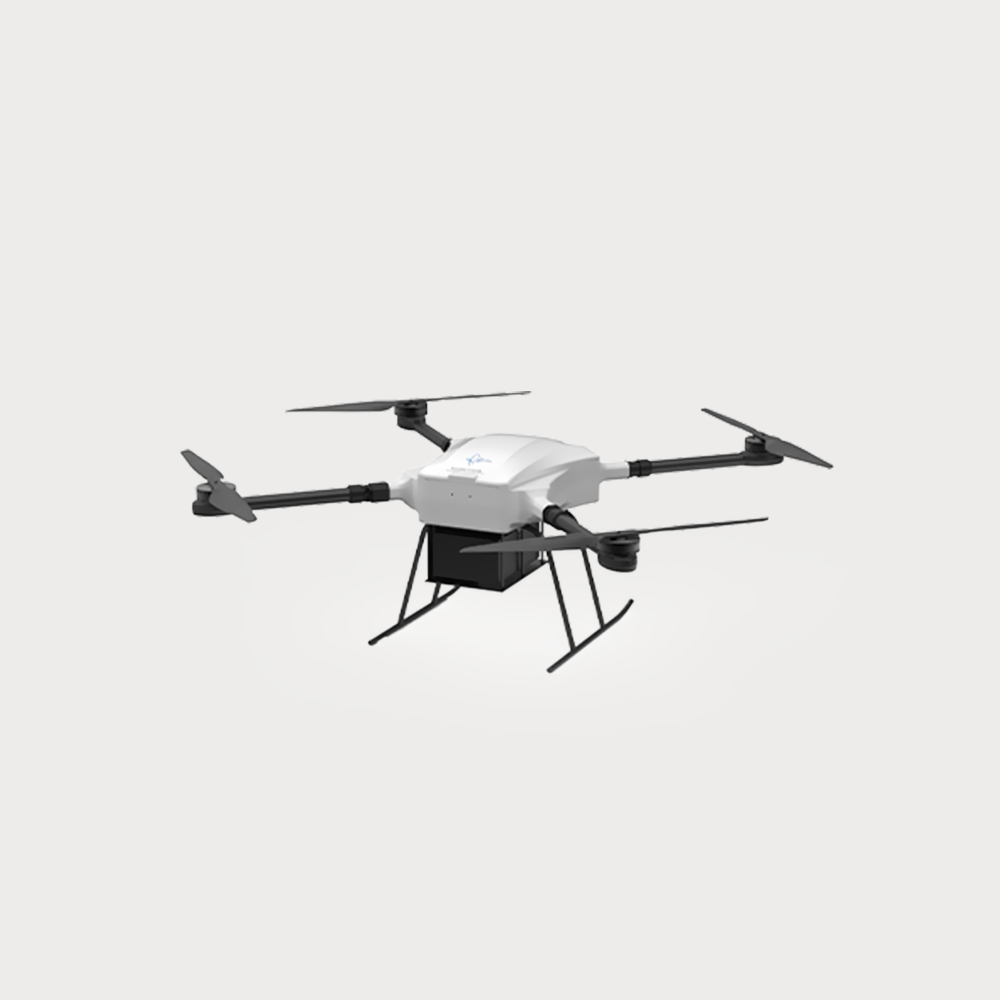

Four-rotor UAV , foldable design, convenient for transportation

Wheelbase 1200mm

Maximum take-off weight 14kg

The maximum load weight is 3kg

Battery life 70min@2kg

Ceiling 5000m

Wind resistance level 6

Rapid 3D modeling payload

Full frame tilt camera, combined with advanced photography technology and innovative design, has excellent performance and functions, making the acquisition of disaster area real data more accurate and comprehensive. Whether it is the buildings, roads, terrain or other geomorphicfeatures of the disaster area, it can capture a picture of rich detail.

Three-lens camera

The three-lens camera is a four-sensor mixing camera, zoom camera, thermal imaging camera,laser rangefinder, and wide-angle camera efficient collaboration. The three-lens camera is a four-sensor hybrid camera, zoom camera, thermal imaging camera, laser rangefinder, and wide-angle camera efficient collaboration. It is equipped with 640×512 high resolution thermal imaging sensor,1200m high precision laser ranging, 180x hybrid zoom and 30x optical zoom. (1/2.7 inch SONY CMOS supports 4k level video recording and photography), 2Kultra-wide Angle, powerful Al tracking and recognition function based on neural network processor, infinite rotation of heading axis, upgraded version of shock absorption quick-release structure, rich gimbal control interface can be compatible with third-party link products, The high-precision and high-coordination control algorithm maintains stable zoom and imaging effects in flight.
