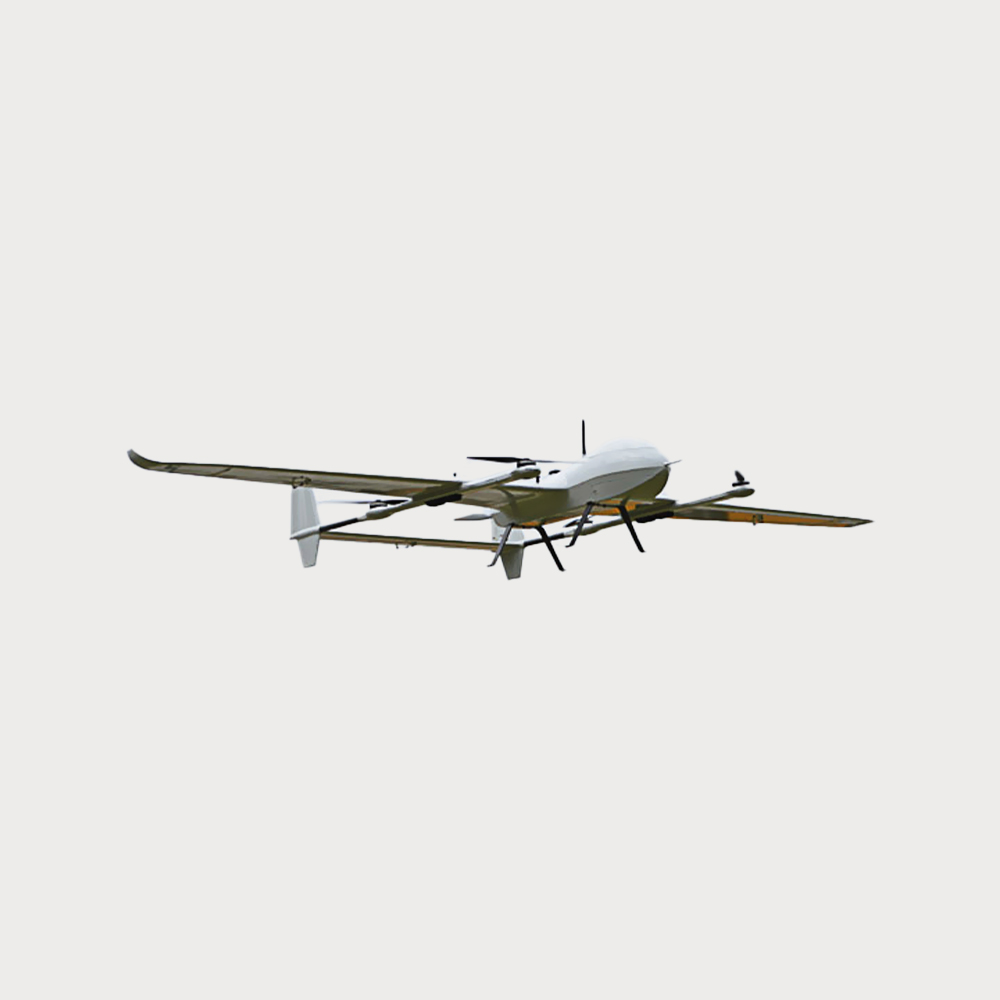

Forest fire prevention inspection drone thermal imaging JR-YL1196

Battery life：2.5h@5kg payload

Cruising speed：80～110km/h

Practical ceiling：4000m

Maximum wind resistance：12m/s (level 6 wind)

Use environmen：t-20℃+65℃;

Prevent light rain

Take-off and landing mode：VTOL

Fuselage length：1.93m

Wingspan：3.4m

Maximum take-off weight：18kg

Differential positioning system：RTK

Quick release design：The module is quickly disassembled and assembled, and the assembly can be completed within 5 minutes with bare hands.

Airbox size：1260×470×470mm (fuselage)1750×470×250mm (power boom box)
