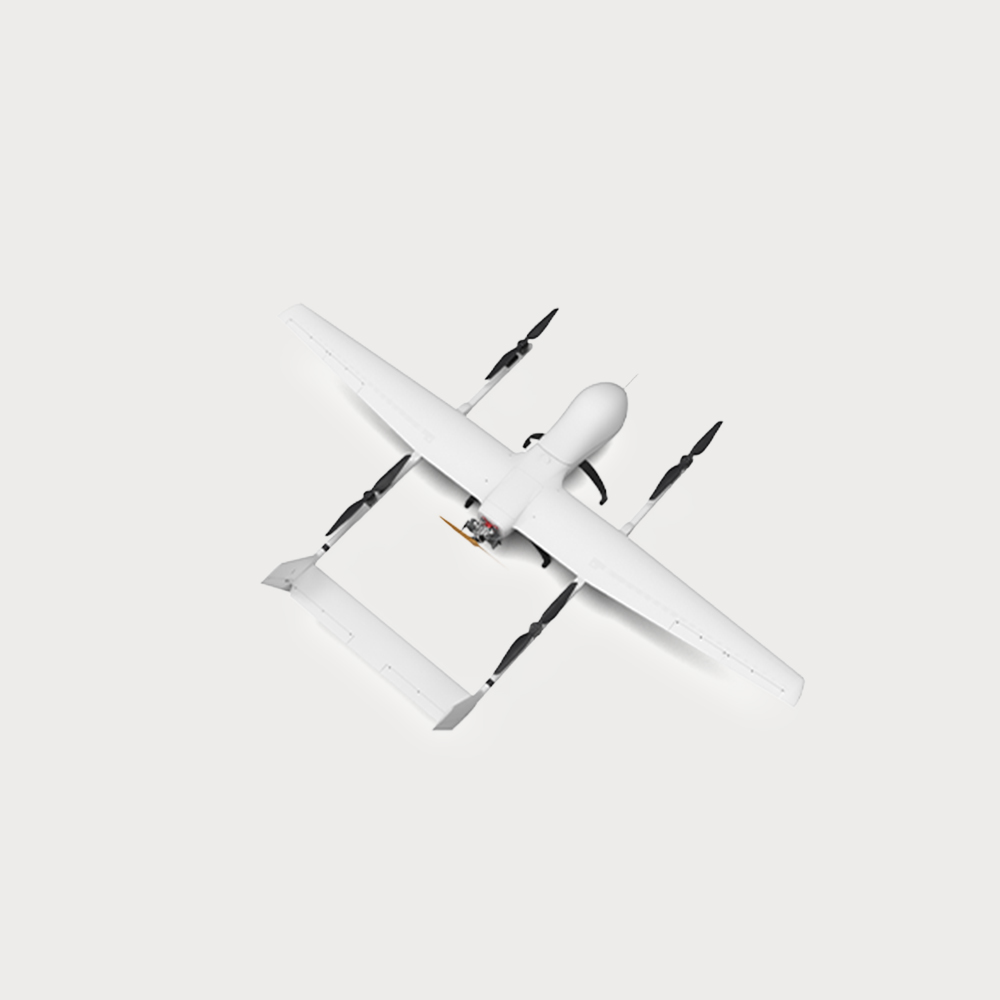

Airborne Satellite Communication UAV

Wingspan 6300mm

Length 3850mm

Maximum take-off weight 145kg

Maximum load weight 30kg

Battery life 4~6h

Cruising speed 126-162km/h

Ceiling 5500m

Wind resistance: Category 7 winds

Airborne emergency public

JR-FC1205 emergency communication composite wing UAVis equipped with airborne satellite

network communication system

communication equipment, airborne public network base station, maintains link communication

with satellites through high-altitude flight, adopts 4G/5G communication technology, transmits

business data back to the operator’s core network through satellite transmission,restores public

network communication in the disaster-hit area directionally, and provides voice,SMS and

Internet services for users in the disaster-hit areas.

Airborne emergency

JR-FC1205 emergency communication composite-wing UAV is equipped with airborne satellite

communication private network

communication equipment,airborne PDT cluster base stations, airborne broadband AD hoc

networking equipment, etc., to quickly build emergency communication private network for

system

public security, emergency and other departments, to meet the real-time information and

command exchange requirements between the command center and frontline search and

rescue personnel, and to ensure the smooth progress of rescue work.

Rapid 3D modeling payload 22.5

JR-FC1205emergency communication composite wing UAVis equipped with rapid 3D modeling

gigapixels /5 lens

payloads, which can quickly complete aerial survey data acquisition, generate 3D models in

real time, and publish a map to the emergency command of the Ministry of Emergency

Management in real time, quickly provide real-time 3D situation maps for the front and rear

command, and assist in the research and judgment of disaster development.
