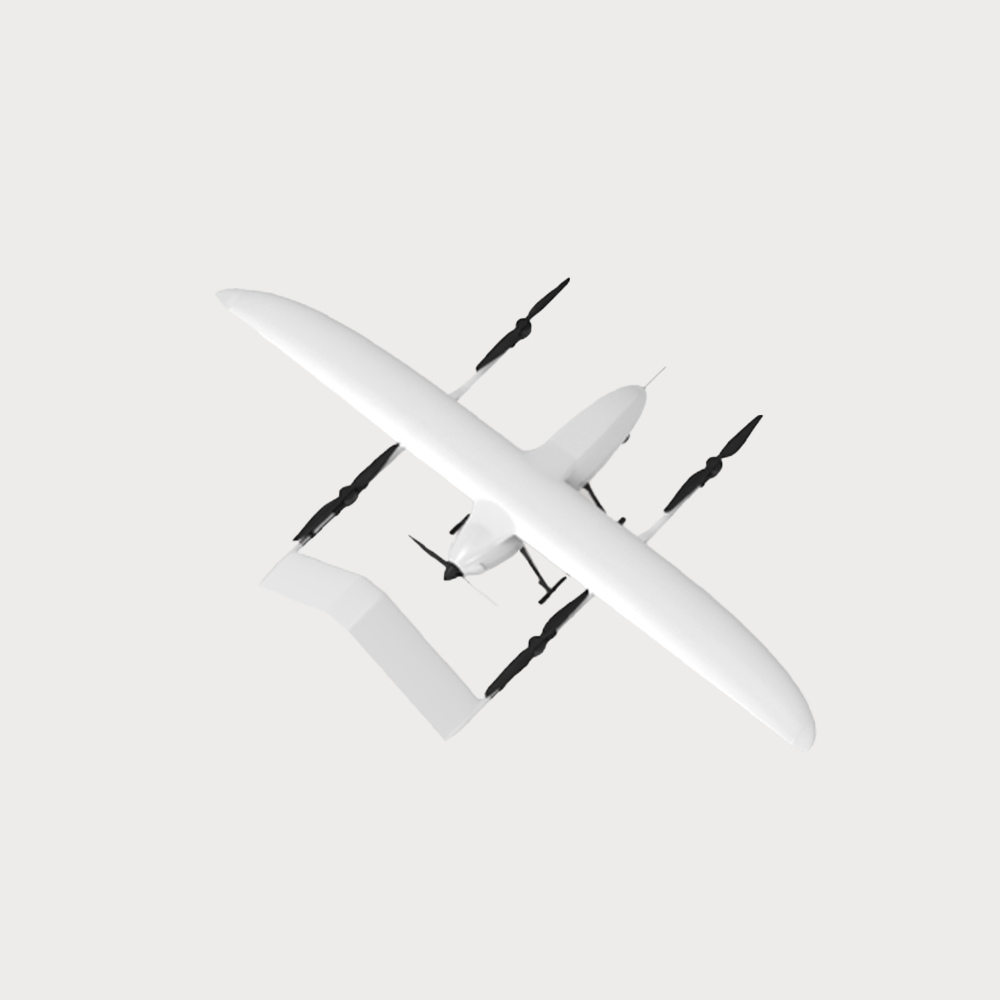

Composite-Wing VTOL Inspection UAV

Wingspan 3530mm

Length 1900mm (without airspeed tube)

Maximum take-off weight 24.8kg

The maximum load weight is 5kg

Battery life 180min@2kg

Cruising speed 80-90km/h

Ceiling 5000m

Operating temperature: -20°C-50°C

Wind resistance ratingLevel 6 (Cruising Phase)

Tilt camera

Honeycomb Aerospace UAV with tilt mapping camera, can achieve high precision, wide area

coverage and high efficiency aerial photography task. It can adapt to aerial photography tasks

in a variety of weather and natural environment, and can be used in surveying and mapping of

land info, such as emergency and aerial photography, and applied to land ownership

confirmation, real estate registration, pile measurement, highway surveying and other scenes.

Modularized design of the camera body and components, equipped with multiple sensors.

orthophoto camera

Honeycomb Aerospace UAV with orthophoto camera can be used in traditional surveying and

mapping industry, bridges, buildings and other special inspection scenarios. It can realize

microsecond time synchronization between camera, gimbal, flight control andRTK,which can

work without image control. The othophoto camera has a professional mapping lens integrated

with multiple LD low dispersion lenses and multi-layer enhanced nano coating, which can filter

the reflected light of the aerial view Angle, and the aerial film has stable quality, transparent imaging and other characteristics.

Laser radar

Honeycomb Aerospace UAV with laser radar meets the large-scale, high-precision, high-density

point cloud data acquisition, can be used in pipeline inspection, terrain mapping, forestry

resources survey and other fields. To provide data collection, processing analysis, report output

and other system solutions for the industry. Laser radar integrates lightweight multi-line laser

radar, high-precision combined navigation system and visible light camera, which has the

characteristics of high precision, fast mapping and fast scanning speed.
