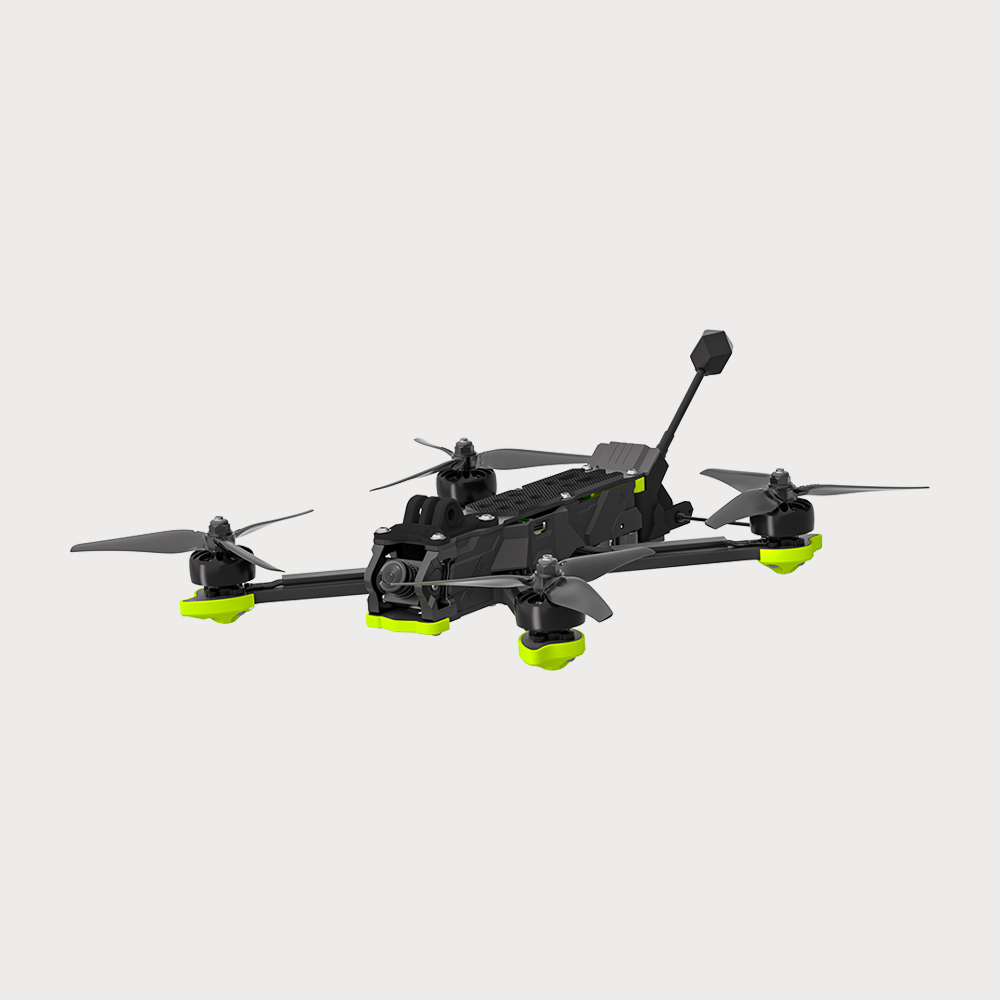

Anti-Spark Filter FPV UAV

JR-IF1237

Rack: Positive X-shaped

Motor diagonal distance: 245mm

Size(L*W*H):173*173*34mm

Weight: 427±5g (with propellers/nuts/antennas/non-slip pads)

Takeoff weight: 652±5g (with 6S 1400mAh battery)

Maximum horizontal flight speed: 190km / h

Maximum altitude take-off: 7000m

Maximum hovering time: about 7.5 minutes (Li-ion battery 6S 1400mAh battery no-load)

Maximum cruising time: about 8 minutes (Li-ion battery 6S 1400mAh battery no-load)

Maximum wind resistance level: 7 levels

Working environment temperature: -10°C—40°C

JR-IF1238

Rack: DC type

Diagonal distance of motor: 240mm

Motor: XING-E Pro 2207

Propeller: Nazgul F5

Weight: 450±5g

Takeoff weight: 675±5g (with 6S 1400mAh battery)

Dimensions (L×W×H): 193×144×34mm

Maximum horizontal flight speed: 190km / h

Maximum altitude take-off: 7000m

Maximum hovering time: about 7.5 minutes (6S 1400mAh battery no load)

Maximum cruising time: about 8 minutes (6S 1400mAh battery no load)

Maximum wind resistance level: 7 levels

Working environment temperature: -10°C—40°C

Number of antennas: Dual antennas

GNSS (optional): GPS+SBAS+Galileo+QZSS+Glonass
