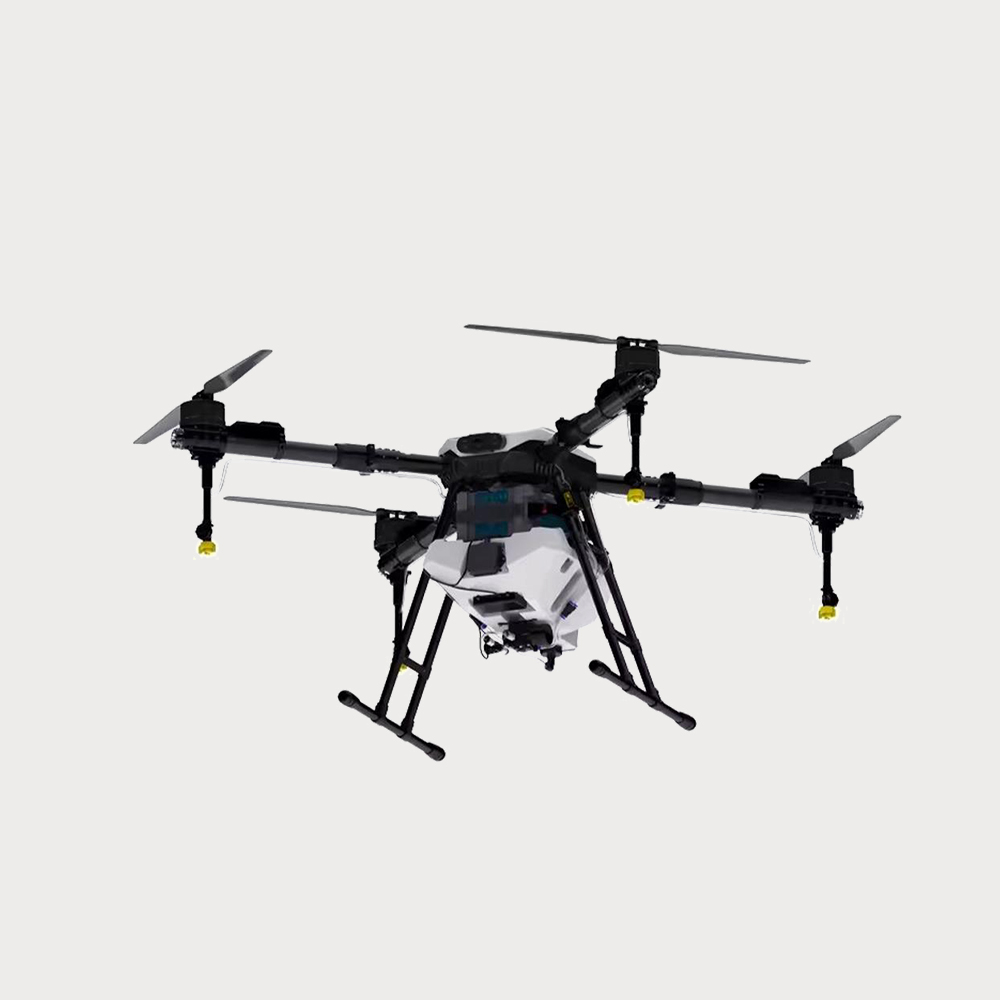

JR-JAS75 Plant Protection Drone 10kg

Front FPV camera with 120 wide-angle lens alnd dual high-brightness LED, present the forward vision on the remote control

High Performance

Super power waterproof motor,preciseadjustment of flight attitude; new flexible

connection structure, optimize the connectiondesign of motor and arm, and continuouslyprovide stable and sufficient power support forhigh load operation

double radar obstacle avoidance, millimeterwave radar sensing ability, with automaticobstacle avoidance and ground-like flight function, fully guarantee the safety ofoperation

ground-like radar is located at the bottom of the medicine box to detect whether there are obstacles in the terrain to hinder the flight, and conduct flight operations according to the terrain.

nozzle adopts pressure spraying, flexible adjustment of flow andatomization effect as standard fan-type nozzle, precision wear-resistant.The whole machine is equipped with 4 nozzles, whichare located under the motor. The down-flowing gas produced bythe rotor acts on the atomized agent, allowing the agent toreach the roots of the plant and penetrate into the back of thestems and leaves.

JR75technical parameters:

developed dimension:

1100*1100*600mm

diagonal wheelbase:

1400mm

working voltage:

44.4V(14S)

Weight:

12kg

flight speed:

3-8m/s m/s

load:

10L

spray width:

3-5m/s m/s

Maximum takeoff weight:

28kg

pump maximum pressure:

0.8mpa

Spray Flow:

4-8/min

flight time:

No-load(20-25min)

full load(7-10min)

Battery:

12S16000mah

Operation efficiency:

1.5-3Acres/mu/Mmin min

charging time:

15-30min/min

sprinkler system:

pressure nozzle

charging cycle:

300-500times

Material:

carbon fiber/nylon fiber/aluminum alloy

daily efficiency:

300-600Acres acres

packing box:

700*700*620mm

technical parameters:

Operating voltage range:Master: 4.8V5.3V

power supply module: input 11.1V50V (recommended 3S-12SLipo); maximum output current 3A @ 5V

GPS module: 5V

LED lamp module: 5V

battery voltage: 3-12s

power consumption: <5W

working environment temperature:-10 ℃60 ℃

Storage Ambient Temperature:-25 ℃60 ℃

Weight:master controller: 87g

GPS/magnetic compass module: 45g

LED lamp module: 14g

PMU:41g

Size:main controller: 72.6*44.6*22.8mm

GPS/magnetic compass module: 62mm (diameter)

LED lamp module: 24*24*8mm

PMU:53.4*34.4*14.5mm

flight characteristics:

hovering accuracy: horizontal direction: ± 1.5m vertical direction: ± 0.5m

maximum tilt angle: 30 °

maximum yaw speed: 150 °/s

Maximum vertical speed: 6 m/s

Maximum wind resistance: continued wind: level 4 gust: level 5
