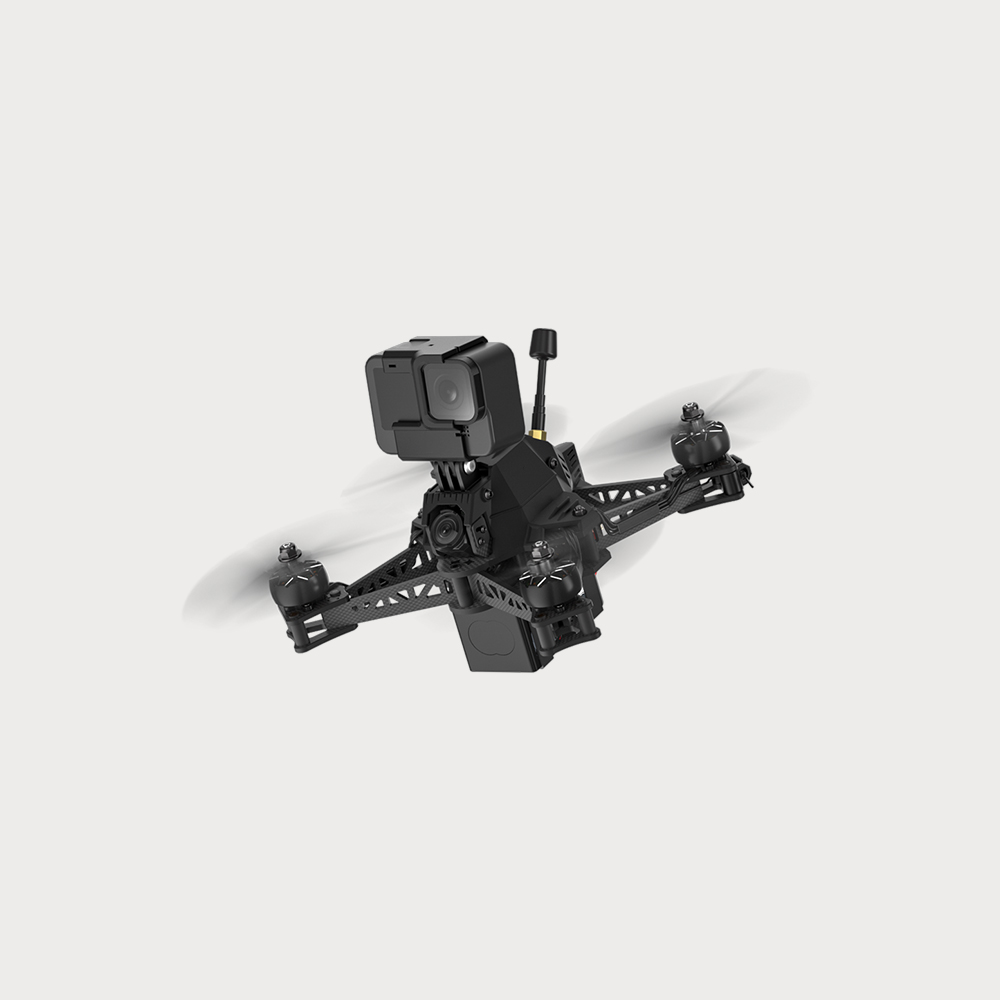

Advanced Truss Arms Bottom Mount Battery UAV

Rack: Positive X-shaped

Motor diagonal distance: 210mm

Motor: XING2 2207

PROPELLER: GEMFAN 5.1X3.6X3

Weight: 472±7g

Dimensions (L×W×H): 148×148×64mm

Maximum horizontal flight speed: 160km/h

Maximum altitude take-off: 7000m

Maximum hovering time: about 11 minutes (Li-ion battery 6S 1400mAh battery no-load)

Maximum cruising time: about 10 minutes (Li-ion battery 6S 1400mAh battery no-load)

Maximum wind resistance level: 7 levels

Working environment temperature: -10°C—40°C

Number of antennas: single antenna

GNSS：GPS+SBAS+Galileo+QZSS+Glonass
